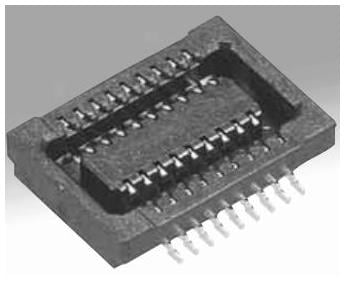

Hirose Electric DF23C-40DP-0.5V(92) Headers PLUG 40P DUAL 0.5MM SMT
ManufacturerHirose Electric(View more products from this manufacturer)
ModelDF23C-40DP-0.5V(92)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 0.5 mm (0.02 in)
Unit Weight: 363 mg
Stack Height: 1.5 mm
Current Rating: 300 mA
Mounting Angle: Straight
Voltage Rating: 50 VAC
Contact Plating: Gold
Contact Material: Phosphor Bronze
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder
Flammability Rating: UL 94 V-0
Number of Positions: 40 Position
Insulation Resistance: 500 MOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 35 C
