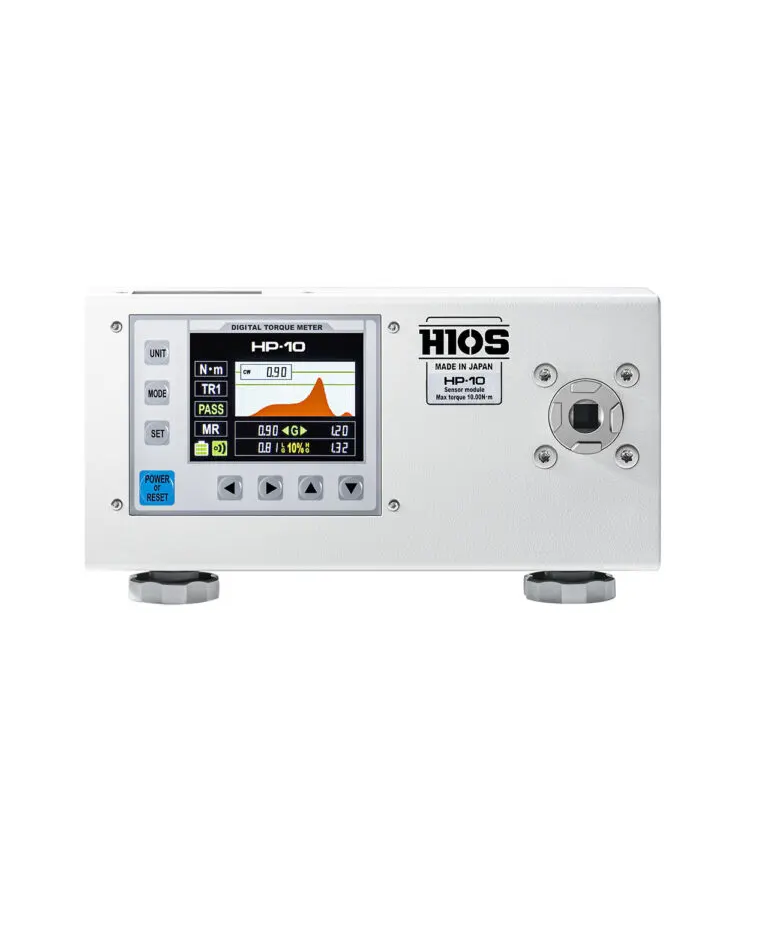

HIOS HP-10-NK-R3-W Digital Torque Meter (0.015 – 1.000 N·m, RS-232C, HIOS Drive)

Interface: Bluetooth, RS-232C

Meas.range:

0.015-1.000 N・m

1.5-100.0 N・cm

0.15-9.00 lbf・in

0.15-10.00 kgf・cm

Min. display unit: 10digit

Meas. mode: PEAK, TR1 (torque waveform), TR2 (continuous torque waveform)

Meas. direction: Right-hand screw, left-hand screw

Meas. accuracy: Within ±0.5% (F.S.)

Charging and scalability:

Supports the following with a micro USB Type-B port:

Charging

Data transfer (USB 2.0: up to 480Mb/s)

Size (W x D x H): 230 x 110 x 50 mm (excluding the largest protrusion)

*For more information, download the DXF file from the website.

Weight: 1.94kg

Datasheet
