Direct access to our certified experts
Peak mesuring range lbf・in: 0.015-0.9
Accuracy: Within ±0.5% (F.S.)
Measuring models: TRACK, PEAK, FIRST PEAK
External Dimensions(mm): 230 ×124 ×65.2 (H)
Weight(g): 1.8kg
Charging time: 1.2V NiMH x 5 cells 1,000mA (within 6 hours)
Continuous operating time ona full charge: 8 hours
Battery life: About 300 charges
Exclusive battery charger: Input：AC 100-240V （50 / 60Hz）
Output：DC 7.3-8V 0.5 A
Manual
Feature

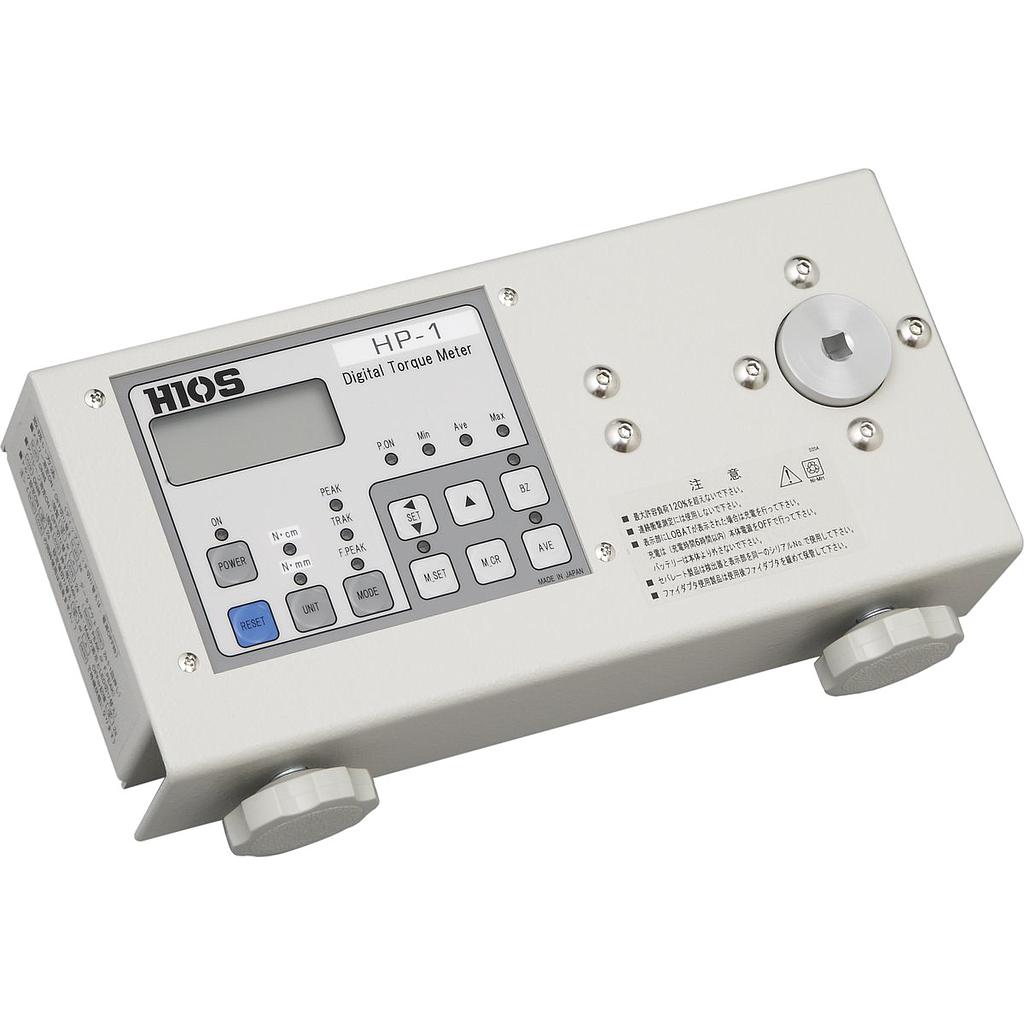

Use for making torque settings on electric screwdrivers, checking torque of torque wrenches or measuring torque of various rotating units, etc.
● Measured data can be imported to a computer.
● Up to 100 data items can be stored in the memory and controlled (applicable to HP and HDP only).
● With one unit of Torque Meter, max, min and ave torque values can be measured (applicable to HP and HDP only).
● New product, HP-1 is ideal for measuring 10N･cm or smaller torque.
● Torque for both clockwise or counterclockwise can be measured.
● As a standard specification, data output and analogue output are available.
● We offer calibration and maintenance services.
● “Inspection Report” is attached to all the Torque Meters.
