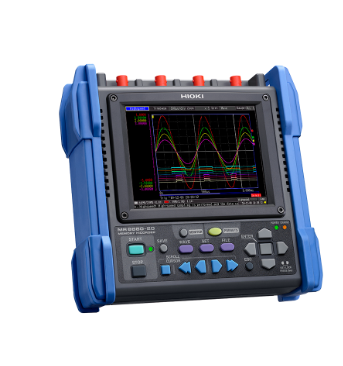

Number of channels: 4 analog channels + 8 logic channels (standard)
Note: Isolated analog channels, isolated input and frame, logic has common GND
Measurement ranges(10 div full-scale): 4 channels of voltage measurement; mode switchable between instantaneous waveform or RMS value, 10 mV to 100 V/div, 13 ranges, resolution: 1/640 of range
RMS value mode: 30 Hz to 10 kHz, Crest factor: 2
Max. rated voltage: Between terminals: 600 V AC/DC, Between terminal to earth: 600 V AC/DC CAT III; 300 V AC/DC CAT IV
Frequency characteristics: DC to 100 kHz (±3dB)
Time axis(High-speed function): 100 µs to 100 ms/div, 10 ranges, Sampling period: 1/100 of range
Recording intervals(Real-time function): 100 µs to 1 minute, 19 selections (simultaneous sampling in all channels)
Measurement functions: High-speed function (high speed recording)
Real-time function (actual time recording)
Memory capacity: 14-bits × 1M-words/ch (1 word = 2 bytes)
Removable storage: CF card slot ×1 (Up to 2 GB), USB 2.0 memory ×1
Printing: [Printer unit is option] 112 mm (4.41 in) × 18 m (59.06 ft), thermal paper roll, Recording speed : 10 mm (0.39 in)/sec
Note: Printing is not supported when using alkaline batteries
Display: 5.7-inch VGA-TFT color LCD (640 × 480 dots)
Displayable languages: English, Japanese, Chinese
Communication interfaces: USB 2.0 mini-B receptacle × 1; Transfers files from the installed CF card or USB memory stick to a PC when connected, and External PC control
Power supply: AC adapter Z1002: 100 to 240 V AC (50/60 Hz), 45 VA (include AC adapter, when Real-time recording), 107 VA (include AC adapter, when Real-time recording and printing)
Battery pack Z1000: AC adapter has priority when used in combination with battery pack, recharge with AC adapter 3 hours, Continuous use 3 hours (with back-light ON)
LR6 (AA) alkaline batteries ×8, Continuous use 40 minutes, (with back-light ON, cannot be used with the Printer unit)
DC power supply: 10 to 28 V DC (cable available by special order)
Dimensions and mass: 205 mm (8.07 in)W × 199 mm (7.83 in)H × 67 mm (2.64 in)D, 1.66 kg (58.6 oz) (with the Battery pack installed)
When printer is combined - with main unit: 303 mm (11.93 in)W × 199 mm (7.83 in)H × 67 mm (2.64 in)D, 2.16 kg (76.2 oz) (with the Battery pack installed)
Included accessories: Instruction manual ×1, AC adapter Z1002 ×1, Alkaline battery box ×1, Strap ×1, USB cable ×1, Application disk (Wave viewer Wv, Communication commands table) ×1
