Hioki LR5092-20 CLAMP LOGGER | EMIN.CO.TH

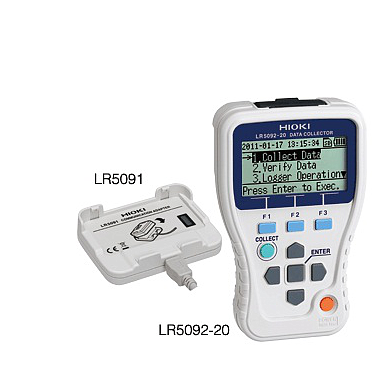

Hioki LR5092-20 CLAMP LOGGER

Name: Hioki LR5092-20 CLAMP LOGGER
Brand: HIOKI

ManufacturerHIOKI

ModelLR5092-20

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Specification
- Interface with Data Logger: Infrared optical communications
- Interface with PC: USB2.0, Full Speed, Series Mini B Receptacle
- Display: Dot-matrix LCD (128 × 64 dots)
- Display items: Data Logger configurations Collected data
- Internal memory capacity of data:
+ 60,000 data elements ×16ch (instantaneous value mode)
+ 15,000 data elements ×16ch (statistical value mode)
- Dimensions & Mass: 91x141x31mm, 215g
- Power supply: LR6 (AA) Alkaline battery 1.5V × 2 (DC 3V)
- Battery life: Approx. 12 hours or 500 times of data collection
- Accessories: CONNECTION CABLE LR9801×1, Kickstand LR6 (AA) Alkaline battery 1.5V×1, Instruction manual ×1, Operation manual×1
- The warranty period: 12 month

	LR5091	LR5092
Interface with Data Logger	Infrared optical communications	Infrared optical communications
Interface with PC	USB2.0, Full Speed, Series Mini B Receptacle	USB2.0, Full Speed, Series Mini B Receptacle
Display	-	Dot-matrix LCD (128 × 64 dots)
Display items	-	Data Logger configurations Collected data
Internal memory capacity of data	-	60,000 data elements ×16ch (instantaneous value mode) 15,000 data elements ×16ch (statistical value mode)
Removable storage media	-	SD Card (SDHC, Max 32GB) Save data and configurations
Power supply	USB bus power	DC3V (LR6 (AA) Alkaline battery 1.5V×2) USB bus power
Battery life	-	Approx. 12 hours or 500 times of data collection
Dimensions & Mass	Approx. 83mm(3.27 in)W×61mm(2.40in) H×19mm(0.75in)D, 43g(1.5oz)	91mm(3.58in)W×141mm(5.55in)H×31mm(1.22in)D 215g(7.6oz) (excluding batteries)
Accessories	USB cable (1m)×1, CD (Application software "LR5000 Utility") × 1	Instruction manual ×1, Operation manual×1, LR6 (AA) Alkaline battery 1.5V×2, USB cable(1m)×1, CD (Application software "LR5000 Utility") × 1
