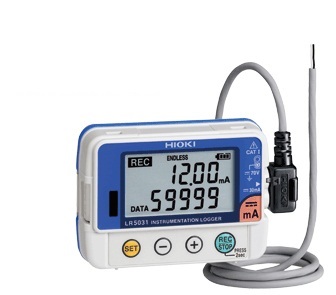

Hioki LR5031 CLAMP LOGGER

Specification
- Feature: Record 4-20 mA instrumentation signals, etc.
- Measurement items: For instrumentation / 0 to 20mA DC, 1ch
- Measurement range: DC -30.00 to 30.00mA
- Basic Accuracy: ±0.5%rdg. ±5dgt. (@23°C±5°C)
- Waterproof and dustproof: IP54
- Operating temperature and humidity: -20°C(-4°F) to 70°C(158°F) , 80%rh or less
- Dimensions & Mass: 79x57x28mm,105g
- Power supply: LR6 (AA) Alkaline battery 1.5V × 1
- Battery life:
+ Case 1 : Approx. 2 years
+ Case 2: Approx. 2 months
- Accessories: CONNECTION CABLE LR9801×1, Kickstand LR6 (AA) Alkaline battery 1.5V×1, Instruction manual ×1, Operation manual×1
- The warranty Period: 12 month

Datasheet
