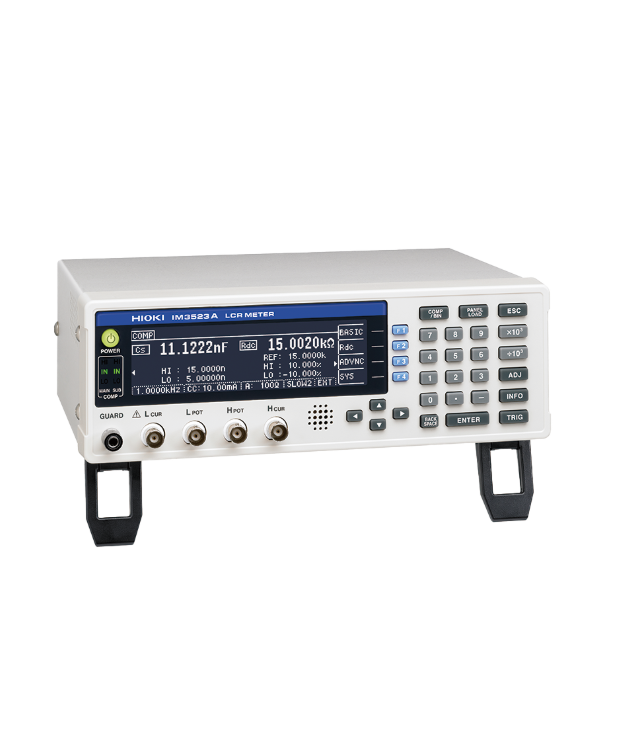

Measurement modes: LCR (Measurement with single condition), Continuous testing (Continuous measurement under saved conditions)
Measurement parameters: Z, Y, θ, X, G, B, Q, Rdc (DC resistance), Rs (ESR), Rp, Ls, Lp, Cs, Cp, D (tanδ)
Measurement range: 100 mΩ to 100 MΩ, 10 ranges (All parameters defined in terms of Z.)
Displayable range:
Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp :
± (0.00000 [unit] to 9.99999G [unit]) Real value display for Z and Y only
θ: ± (0.000° to 180.000°), D: ± (0.00000 to 9.99999)
Q: ± (0.00 to 99999.9), Δ%: ± (0.0000% to 999.999%)
Basic accuracy: Z : ±0.05% rdg. θ: ±0.03°
Measurement frequency: 40 Hz to 200 kHz (5 digits setting resolution)
Measurement signal level:
V mode, CV mode: 5 mV to 5 Vrms, 1 mVrms steps
CC mode: 10 μA to 50 mArms, 10 μArms steps
Output impedance: 100 Ω
Display: Monochrome LCD
Measurement time: 2 ms (1 kHz, FAST, representative value)
Functions: Comparator, BIN measurement (classify function), Panel loading/saving, Memory function
Interfaces: EXT I/O (handler), USB communication (full-speed), LAN
Power supply: 100 to 240 V AC, 50/60 Hz, 50 VA max
Dimensions and mass: 260 mm (10.24 in) W × 88 mm (3.46 in) H × 203 mm (7.99 in) D, 2.1 kg (84.7 oz)
Included accessories: Power cord × 1 , CD-R (Includes Instruction manual, PC commands and Sample software) × 1, Startup guide× 1, Operating precautions× 1
