DC Voltage range:
+ 600.0 mV to 1000 V, 5 ranges
+ Basic accuracy: ±0.15% rdg. ±2 dgt.
AC Voltage range:
+ 6.000 V to 1000 V, 4 ranges
+ Frequency characteristics: 40 Hz to 1 kHz
+ Basic accuracy: 40Hz - 500Hz: ±0.9% rdg. ±3 dgt. (True RMS, crest factor 3 or less)
DC + AC Voltage range:
+ 6.000V to 1000V, 4 ranges
+ Frequency characteristics: DC, 40Hz to 1kHz
+ Basic accuracy: DC, 40Hz - 500Hz: ±1.0% rdg. ±13 dgt. (True RMS, crest factor 3 or less)
LoZ V:
+ 600.0 V, 1 range
+ Frequency characteristics: DC, 40 Hz to 1 kHz
+ Basic accuracy: DC, 40 Hz - 500 Hz: ±1.0% rdg. ±13 dgt. (True RMS, crest factor 3 or less)
Resistance range:
+ 600.0 Ω to 60.00 MΩ, 6 ranges
+ Basic accuracy: ±0.7% rdg. ±3 dgt.
DC Current range:
+ 600.0 mA to 10.00 A, 3 ranges
+ Basic accuracy: ±0.5% rdg. ±3 dgt.
AC Current range:
+ 600.0 mA to 10.00 A, 3 ranges
+ Basic accuracy: 40 Hz - 500 Hz: ±1.4% rdg. ±3 dgt. (True RMS, crest factor 3 or less)
+ Frequency characteristics: 40 Hz to 1 kHz
AC Current range (use with Clamp on probes):
+ 10.00 A to 1000 A, 7 ranges
+ Basic accuracy 40 Hz - 500 Hz: Add the Clamp on probe accuracy to ±0.9% rdg. ±3 dgt. (True RMS, crest factor 3 or less)
Capacitance range:
+ 1.000 μF to 10.00 mF, 5 ranges
+ Basic accuracy: ±1.9% rdg. ±5 dgt.
Continuity Check: Continuity threshold ON : 25 Ω, Continuity threshold OFF : 245 Ω, Response time: 0.5 ms or more
Voltage frequency range:
+ 99.99 Hz to 99.99 kHz, 4 ranges (Limited by minimum sensitivity voltage)
+ Basic accuracy: ±0.1% rdg. ±1 dgt.
Current frequency range:
+ 99.99 Hz to 9.999 kHz, 3 ranges (Limited by minimum sensitivity current)
+ Basic accuracy: ±0.1% rdg. ±1 dgt.
Display: Main and sub displays: 4-digits LCD, max. 6000 digits (excluding frequency measurement), bar-graph
Display refresh rates: 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 times/s)
Power supply: LR6 (AA) alkaline batteries × 3, Continuous operating time: 130 hr. (without Z3210 installed), 70 hr. (with Z3210 installed and using wireless communications)
Dimensions and mass: 87 mm (3.43 in.) W × 185 mm (7.28 in.) H × 47 mm (1.85 in.) D, 480 g (16.9 oz.) (with test leads holder and batteries)
Included accessories:
- Test Lead L9300 × 1
- Instruction Manual × 1
- LR6 (AA) alkaline battery × 3
- Operating Precautions ×1

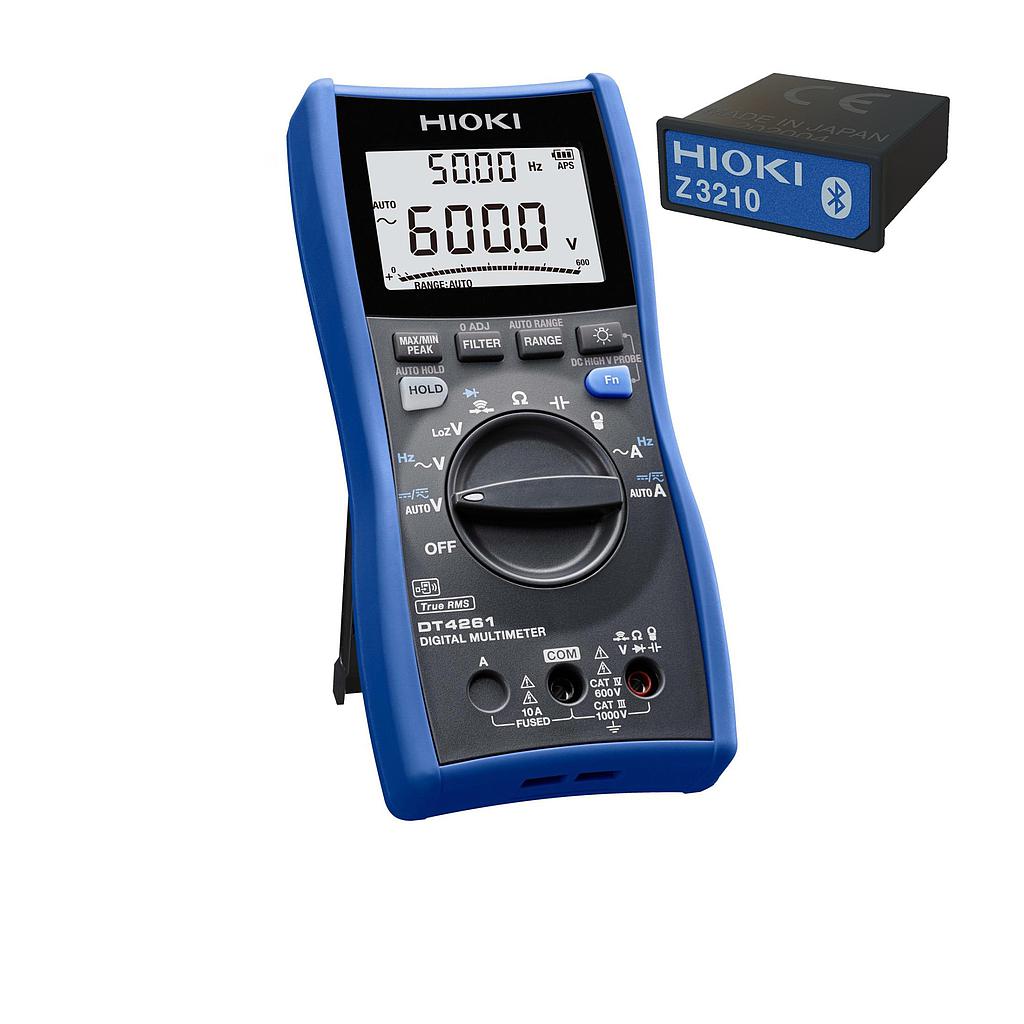

- DT4261, adapter Wireless Z3210
