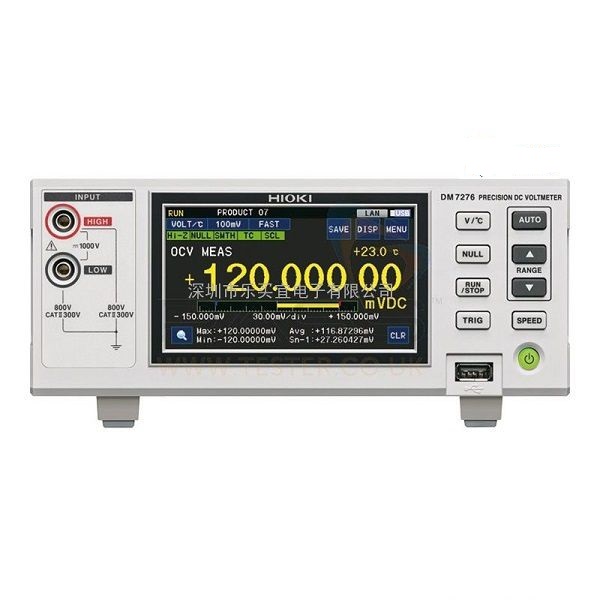

DC Voltage: 100 mV ( ±120.000 00 mV) to 1000 V ( ±1000.000 0 V ), 5 ranges
Basic accuracy: 10 V range: ±0.0009% rdg. ±3 μV
Temperature: -10.0°C to 60.0°C (14.0°F to 140°F), combined with sensor Z2001: ±0.5°C (5.0°C to 35°C)
Integration time: Integration time unit: PLC/ms (PLC setting: 0.02/ 0.2/ 1/ 10/ 100, ms setting: 1 ms to 9999 ms)
Measurement support functions: Smoothing function, null, temperature compensation, scaling, over-range display, auto-hold, contact check
Management support functions: Comparator, BIN, absolute value judgment, label display, statistics, measurement information, communication monitor, EXT. I/O TEST
Contact check: Check signal: 10 mV rms, threshold value: 0.5 nF to 50 nF (Cannot use in the 100 V/1000 V ranges), Contact check integration time: 1 ms to 100 ms
Interfaces Standard: LAN (100BASE-TX), EXT. I/O, USB flash drive / USB device (USB2.0 Full-Speed), Optional: GP-IB (-02 type only) / RS-232C (-03 type only) / PRINTER (-03 type only)
Power supply: 100 to 240 V AC, 50/60 Hz, 30 VA
Dimensions : 215 mm W × 88 mm H × 232 mm D
Weight: (-01 type): 2.3 kg (81.1 oz), (-02/-03 type): 2.4 kg (84.7 oz)
Accessories: Instruction manual ×1, power cord ×1, application disk (CD-R) ×1
