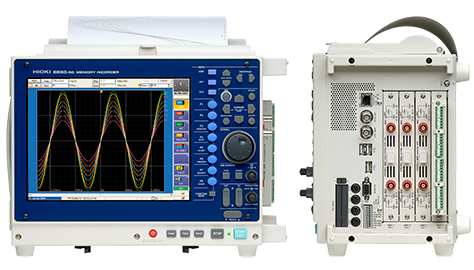

Specification
- Number of input units: Max. 4 units
- Number of channels:
+ Max. 16 analog channels
+ standard 16 logic channels
- Measurement ranges: 5mV to 20V/div, 12 ranges, (using the 8956), resolution : 1/100 of range
- Max. allowable input: DC 400V
- Frequency characteristics: DC to 10MHz
- Time axis: 5 µs to 5 min/div, 26 ranges, sampling period : 1/100 of range, external sampling, dual timebase possible
- Measurement functions: MEM (high-speed recording) REC (real-time recording) REC & MEM (realtime recording + high-speed recording) FFT (frequency analysis) Real-time Save (records directly to storage media)
- Storage memory capacity: 12-bits × 32M-Words/ch (1ch at 8860-50, 2ch at 8861-50) to 2M-Words/ch (16ch at 8860-50, 32ch at 8861-50) *Memory capacity can be expanded 32 times.(Optional memory board)
- Removable storage: SD Card slot × 1, USB 2.0 memory
- Recording paper: (option) A4: 216 mm (8.50 in) × 30 m (98.43 ft), or A6: 112 mm (4.41 in) × 18 m (59.06 ft) selectable, thermal paper roll, Recording speed : Max. 25 mm (0.98 in)/sec
- Display: 10.4 inch TFT color LCD (SVGA, 800 × 600 dots)
- Communication interfaces: GP-IB (PC card), USB2.0 (series A receptacle 3 ports), LAN (HTTP/FTP/ Send mail or other), Monitor output (15-pin D-sub, SVGA output)
- Power supply:
+ 100 to 240 V AC (50/60 Hz) (220 VA max. printer not used)
+ 12 V DC (use the DC POWER UNIT 9684 : option, factory installation only)
- Dimensions, mass: 330 mm (12.99 in) W × 250 mm (9.84 in) H × 184.5 mm (7.26 in) D, 8 kg
- Supplied accessories:Power cord × 1, Input cord label × 1, Application Disk (Wave Viewer Wv, Communication Commands table) × 1
- The warranty period: 12 month
| 8860-50 | 8861-50 | |
| Number of input Units | Max. 4 units | Max. 8 units |
| Number of channels | Max. 16 analog channels (max. 64 channels with scanner unit) + 16 logic channels (standard configuration) | Max. 32 analog channels (max. 128 channels with scanner unit) + 16 logic channels (standard configuration) |
| Measurement ranges (20 div full-scale) |
5mV to 20V/div, 12 ranges, (using the 8956), resolution : 1/100 of range | 5mV to 20V/div, 12 ranges, (using the 8956), resolution : 1/100 of range |
| Max. allowable input | DC 400V (using the 8956) | DC 400V (using the 8956) |
| Frequency characteristics | DC to 10MHz (using the 8956) | DC to 10MHz (using the 8956) |
| Power consumption | 100 to 240 V AC (50/60 Hz) (220 VA max. printer not used) 12 V DC (use the DC POWER UNIT 9684 : option, factory installation only) |
100 to 240 V AC (50/60 Hz) (280 VA max. printer not used) 12 V DC (use the DC POWER UNIT 9684 : option, factory installation only) |
| Dimensions, mass | 330 mm (12.99 in) W × 250 mm (9.84 in) H × 184.5 mm (7.26 in) D, 8 kg (282.2 oz) (printer not installed) | 330 mm (12.99 in) W × 250 mm (9.84 in) H × 284.5 mm (11.20 in) D, 10.5 kg (370.4 oz) (printer not installed) |
| Time axis at memory function |
5 µs to 5 min/div, 26 ranges, sampling period : 1/100 of range, external sampling, dual timebase possible | |
| Measurement functions | MEM (high-speed recording) REC (real-time recording) REC & MEM (realtime recording + high-speed recording) FFT (frequency analysis) Real-time Save (records directly to storage media) | |
| Memory capacity | 12-bits × 32M-Words/ch (1ch at 8860-50, 2ch at 8861-50) to 2M-Words/ch (16ch at 8860-50, 32ch at 8861-50) *Memory capacity can be expanded 32 times.(Optional memory board) | |
| Data storage media | PC Card Type II slot × 2, Hard disk drive (option) × 1 | |
| Recording paper | (option) A4: 216 mm (8.50 in) × 30 m (98.43 ft), or A6: 112 mm (4.41 in) × 18 m (59.06 ft) selectable, thermal paper roll, Recording speed : Max. 25 mm (0.98 in)/sec | |
| Display | 10.4 inch TFT color LCD (SVGA, 800 × 600 dots) | |
| External interfaces | GP-IB (PC card), USB2.0 (series A receptacle 3 ports), LAN (HTTP/FTP/ Send mail or other), Monitor output (15-pin D-sub, SVGA output) | |
| Supplied accessories | Power cord × 1, Input cord label × 1, Application Disk (Wave Viewer Wv, Communication Commands table) × 1 | |
