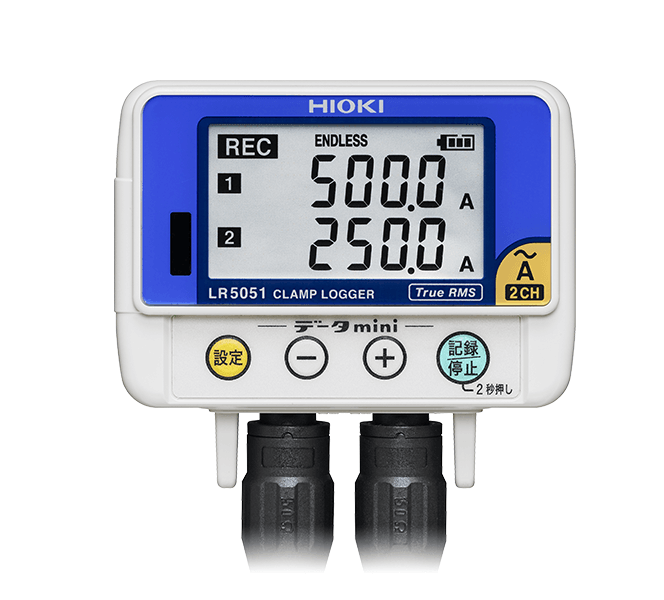

HIOKI LR5051 CLAMP LOGGER

Specification
- Feature: Record load current of 50Hz/60Hz lines Record leak current
- Measurement items: AC Current (2 channels)
- Measurement range:
+ When Using 9669 :1000A range
+ When Using CT6500 :50.00A/ 500.0A range
+ When Using 9695-02 :5.000A/ 50.00A range
+ When Using 9675 :500.0mA/ 5.000A range
+ When Using 9657-10 :500.0mA/ 5.000A range
- Basic Accuracy: ±0.5%rdg. ±5dgt.+Clamp sensor accuracy
- Waterproof and dustproof: Not waterproof
- Operating temperature and humidity: -0°C(32°F) to 50°C(122°F) , 80%rh or less (non-condensating)
- Dimensions & Mass: 79x70x37mm,165g
- Power supply: LR6 (AA) Alkaline battery 1.5V × 2
- Battery life:
+ Case 1 : Approx. 2 years
+ Case 2: Approx. 2 months
- Accessories: LR6 (AA) Alkaline battery 1.5V × 2, Instruction manual ×1, Operation manual×1
