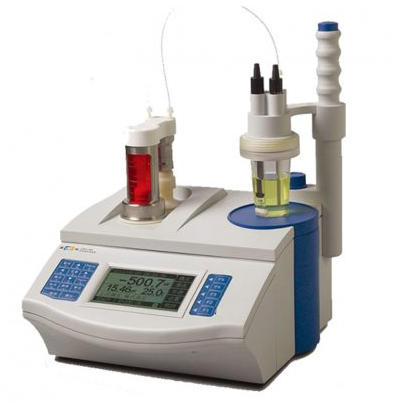

HINOTEK ZDJ-4B Automatic Potential Titrator (-1800.0-1800.0 mV; 0.00 – 14.00pH)

Titration Device: Volumetric Titration Unit:

Repeatability of titration analysis: 0.02%

Allowable error of titration capacity: 10ml Burette: ±0.025ml; 20ml Burette : ±0.035ml

Resolution of butette: 10ml Burette: 1/10000; 20ml Burette: 2/10000

Speed of infusion: (55±10) s (When the burette is full scale)

Measurement Device:

Potential Titration:

Range: (-1800.0-1800.0) mV; (0.00 – 14.00)pH

Resolution: 0.1mV, 0.01

Basic error: pH: ±0.01pH mV:±0.03%FS

Stability: (±0.3mV ±bit)/3h

Temp. Compensation:

Range: (-5.0-105.0) ºC

Resolution: 0.1ºC

Basic error: ±0.3ºC

Power Supply: AC (220±22) V; (50±1) Hz

Dimension (mm) & weight (kg): 540*490*480; 13

Standard Configuration: 10 ml Valve-burette, 213-01 Platinum electrode, 216-01 Silver electrode, 231-01 pH electrode, 217-01 Reference electrode, T-818-B-6 ATC probe pH buffer
