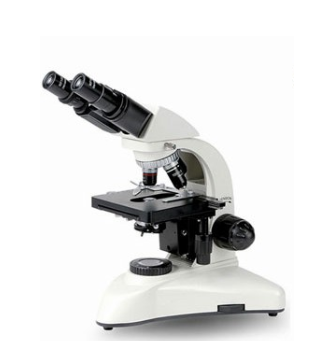

Viewing head: Compensation Free Binocular Head 30°
Interpapillary Distance: 55mm - 75mm
Eyepiece: WF10X
Objective: Achromatic objectives:4X, 10X, 40X(S), 100X(S) Oil
Stage: Double layers mechanical stage; Stage size: 140mm x 140mm; Moving range: 75mm × 50mm
Condenser: Swing type N. A.1.25 Abbe condenser with iris diaphragm & filter
Focusing: Coaxial coarse & fine focusing adjustment with rack and pinion mechanism; Fine focusing scale Value 0.002mm
Collector: High brightness Kohler illumination
Light source: Halogen bulb 6V/20W AC 85-230V; Adjustable brightness
Optional Accessory:
Eyepieces: WF16x, WF20x, P16x
1.3 Mega pixel, CMOS electronic eyepiece
Plan-Objectives: 4X, 10X, 20X(S), 40X(S), 60X(S), 100X(S) Oil
Semi-plan objectives: 4X, 10X, 20X(S), 40X(S), 60X(S), 100X(S) Oil
Infinity objectives: 4X, 10X, 20X(S), 40X(S), 60X(S), 100X(S) Oil
