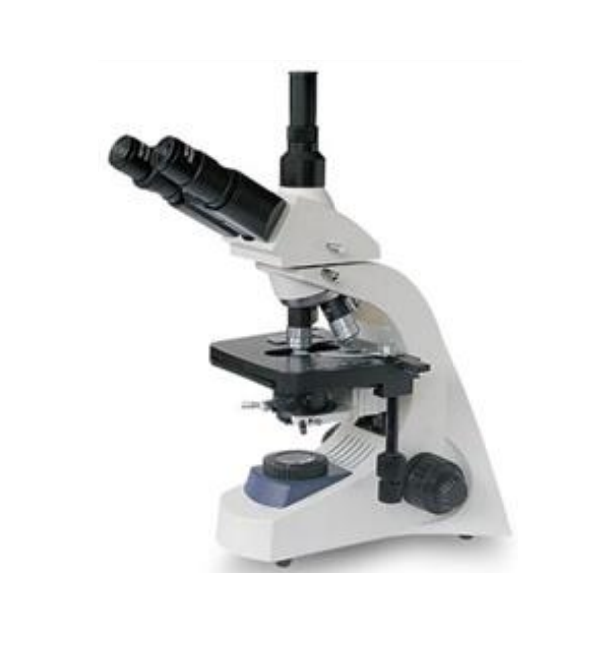

HINOTEK XSZ-148T Biological Microscope (4X-100X)

Viewing Head: compensation free trinocular head, inclined at 30°(55mm~75mm)

Eyepiece: WF10X

Objective: Achromatic Objective: 4X, 10X, 40X(S), 100X (S) Oil

Stage: Double layers mechanical stage, stage size: 180mm*150mm, moving range: 75mm*50mm

Consenser: N.A.1.25 ABBE condenser with iris diaphragm & filter

Focusing: Coaxial coarse & fine focusing adjustment with rack and pinion mechanism, fine focusing scale value 0.002mm

Collector: high brightness Kohler illumination

Light souce: Halogen tungsten bulb 12V/20W AC 85V-230V

Optional Accessory
Eyepiece: WF16X, WF20X, P16X and 1.3 Megapixels CMOS electronic eyepiece.

Plan objectives: 4X, 10X, 20X (S), 40X(S), 60X(S), 100X(S) oil

Semi-plan objectives: 4X, 10X, 20X (S), 40X(S), 60X(S), 100X(S) oil

Infinity Objective: 4X, 10X, 20X (S), 40X(S), 60X(S), 100X(S) oil
