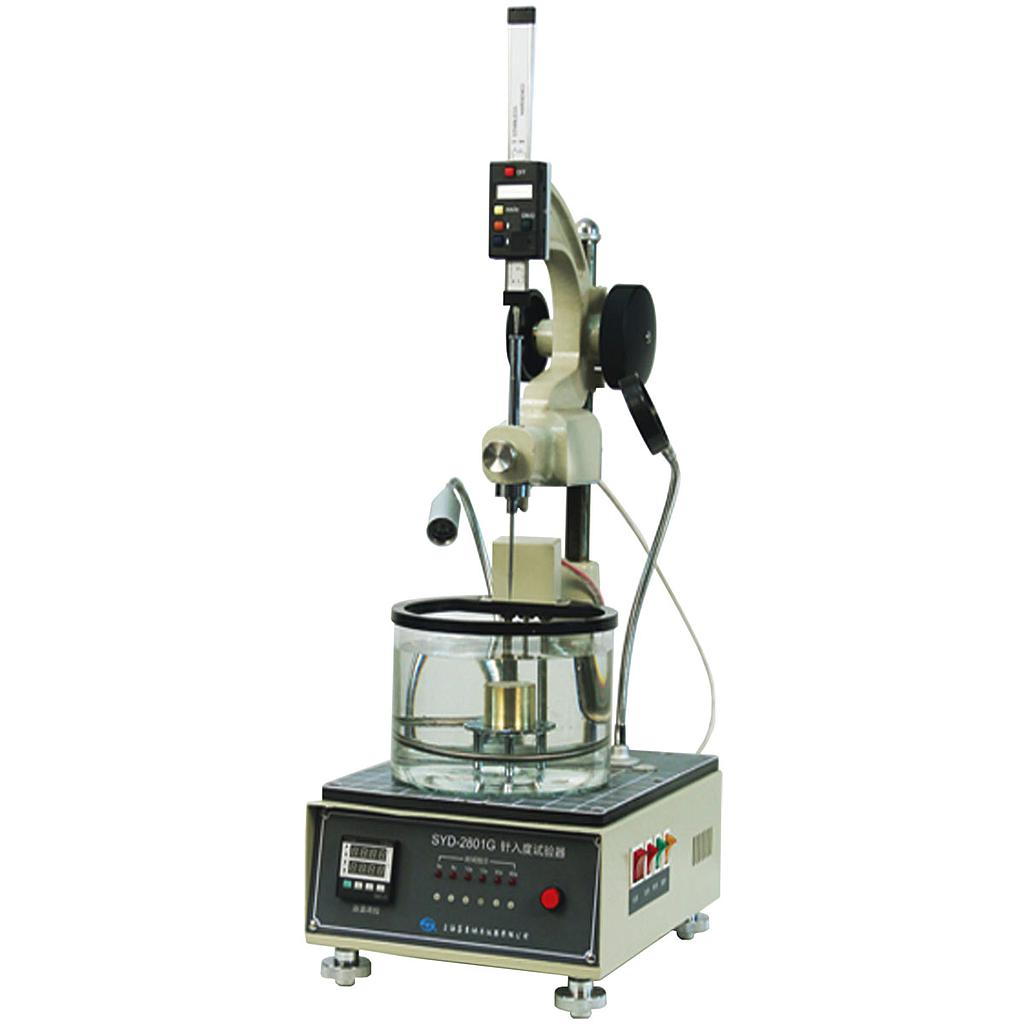

HINOTEK SYD-2801G Penetrometer (0~600; ±1)

Measurement range: (0~600) penetration

Timing device: you can select 5 s, 8 s, 10 s, 12 s, 30 s, and 60 s; Timing error is less than ±0.1 s

Resolution: 0.01 mm

Penetration accuracy: ±1 penetration

Heater power: 200 W

Temperature control accuracy: 25±0.1℃ (Note: The ambient temperature shall not be higher than 20℃)

Temperature control mode: by a high precision digital temperature controller

Constant temperature bath: Hard glass bath

Stirring: automatically stirred by a magnetic stirrer

Standard needle: (2.5 + 0.05) g, GB/T 4985

Lifting support: With coarse and fine adjustment functions; it is used to let the needle point just touch the sample surface

Others: Equipped with a cold light source and a magnifier. It is convenient for instrument operation

Dimensions (LxWxH): 280mm × 350mm × 700mm
