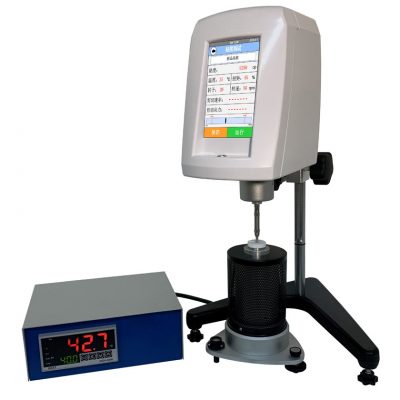

HINOTEK RVDV-1T-H Touch Screen High Temperature Brinell Viscometer

Control / Display: 5-inch color touch screen

Speed (r/min): 0.3 - 100, Stepless speed,998 speeds available

Measuring range (mPa.s): 6.4 - 3.3M

Rotor No.0: 6.4-1K

Rotor No.21: 50-167K

Rotor No.27: 250-834K

Rotor No.28: 500-1.7M

Rotor No.29: 1K-3.3M

Rotor: 21, 27, 28, 29 (Standard)

No.0 (Optional)

Sample dosage:

Rotor No.0: 21ml

Rotor No.21: 7.8ml

Rotor No.27: 11.3ml

Rotor No.28: 12.6ml

Rotor No.29: 11.5ml

Measurement error: ±1% (Newtonian liquid)

Repetitive error: ±0.5% (Newtonian liquid)

Computer output interface: RS232

Working power supply: Viscometer mainframe: wide voltage operation (110 V/60 Hz or 220 V/50 Hz)

Outline dimension: 300 × 300 × 450 (mm)
