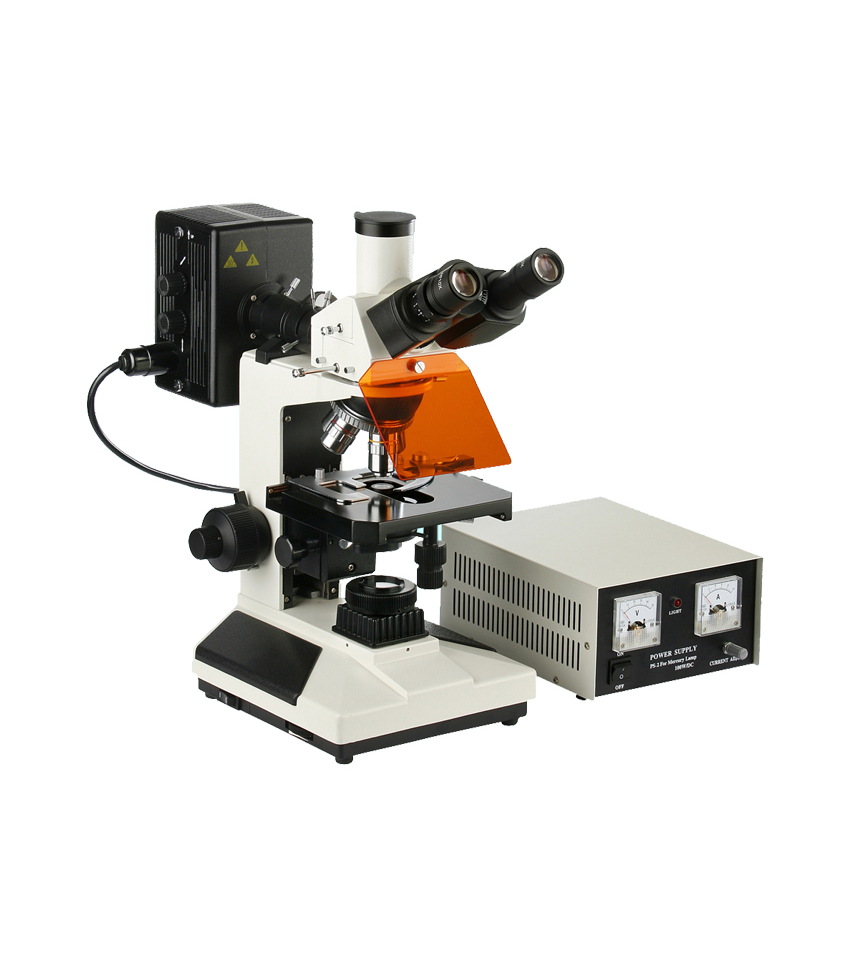

HINOTEK L2001B Reflected Fluorescence Microscope

Eyepiece: Wide field WF10X(Ø18mm)

Objective: Plan achromatic objectives PL 4X/0.10; Plan achromatic objectives PL 10X/0.25; Plan achromatic objectives PL 20X/0.40; Plan achromatic objectives PL 40X/0.65(Spring); Plan achromatic objectives PL 100X/1.25(Spring, oil)

Eyepiece tube: Trinocular (Inclination of 30˚)

Focus system: Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm

Nosepiece: Quintuple (Backward ball bearing inner locating)

Stage: Double layer mechanical (Size: 160mmX140mm, Move range: 75mmX50mm)

Abbe condenser: N.A.1.25 Rack & pinion adjustable

Filter: Blue filter; Frosted filter

Collector: For halogen lamp

Light source: 6V 20W Halogen lamp with brightness control

Reflected fluorescence system:

- Mercury lamp house 100W/DC

- Power supply unit:AV:110V or 220V

- Fluorescence filter system B exciton wavelength:450~490nm

- Fluorescence filter system G exciton wavelength:495~555nm
