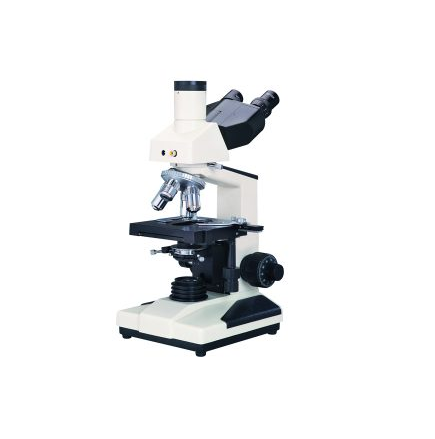

HINOTEK L1180 Video Biological Microscopes (4X/0.10, 10X/0.25, 40X/0.65, 100X/1.25)

Eyepiece: WF10X(Ø18mm)

Objective:

Achromatic 4X/0.10

Achromatic 10X/0.25

Achromatic 40X/0.65(Spring)

Achromatic 100X/1.25(Spring, oil)

Video trinocular:

Built-in clear color 1/3”CMOS sensor, horizontal resolution: 380TV lines

White Balance: Automatic, Color. Video output: 1Vp-p/75ΩNTSC/PAL(optional).

Power supply adapter: 9V DC

Focus system: Coaxi: Quadruple(Frontward ball bearing inner locating)

Stage: Double layer mechanical (Size: 135mmX125mm, Move range: 75mmX35mm)

Abbe condenser: N.A.1.25 Rack & pinion adjustable

Filter: Blue filter; Frosted filter

Collector: For halogen lamp

Light source: 6V 20W Halogen lamp ,adjustable brightness

Attachment: Video cable, length:1.8M
