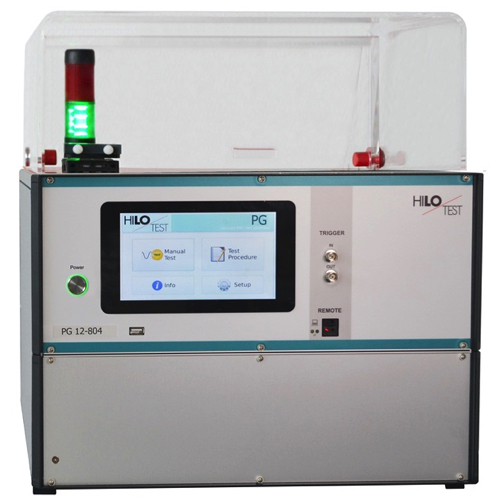

Impulse voltage tests of X- and Y- capacitors
Mainframe
Microprocessor: Controlled touch panel 7”, capacitive
Optical Ethernet Interface: For remote control of the generator (optional)
Interface for saving reports: USB
External Trigger: Input/Output Switch / 10 V
Connector: For external safety interlock loop 24 V= and external red and green warning lamps acc. to VDE 0104, 24 V=, 40 mA
Mains power: 230V, 50/60 Hz
Dimensions (desk top case, W * H * D): 450 * 330 * 500 mm³
Weight: 22 kg
High-Voltage Pulse Generator (acc. to IEC 61000-4-4:2012)
Impulse output voltage (adjustable ± 5%): 0.2 – 6.0 kV ± 5%
Waveform of impulse output voltage:
Risetime: 1.6 µs -0/+50%
Backtime: 47 µs -0/+50%
Polarity (selectable): Positive/Negative
Maximum stored energy (Cs): 400 J
Charging time (for max. charging voltage): Approx. 14 sec
Interior load capacitance (Cp): 3300 pF ± 10%
Pulse forming networks (to test solar modules): Cp = 27 - 470 nF
Spark-over detection: PASS / FAIL
Impulse current output: On the generator’s rear panel, HV female connector
Impulse high voltage dividers: Built-in, to observe the impulse wave shape, ratio 1000 : 1 ± 2%
Accessories: Mains cable, key, HV-connection cable, operation instructions
