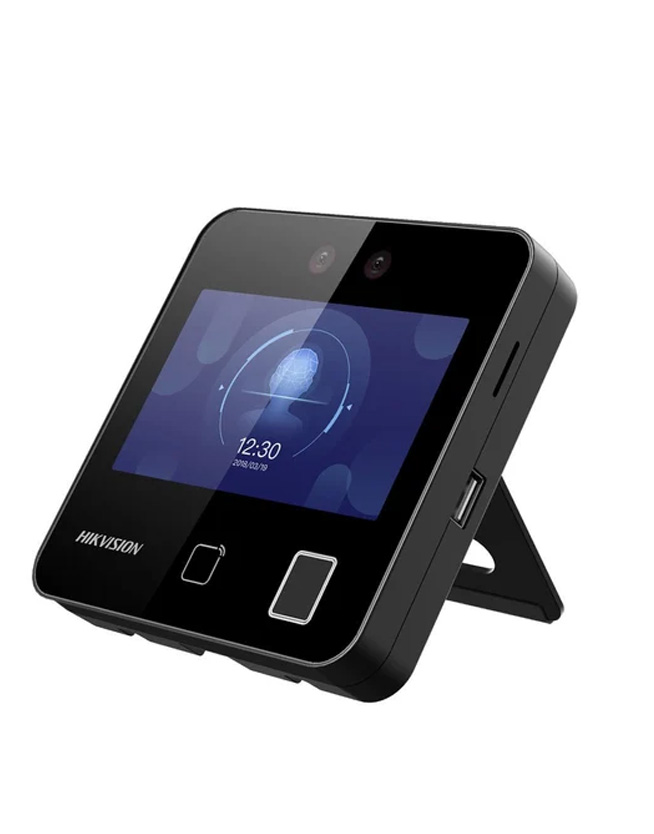

Hikvision DS-K1T343MFX Face Recognition Time Attendance and Access Control

System

Operation system: Linux

Display

Dimensions: 4.3-inch

Resolution: 480 × 272

Type: LCD

Operation method: Capacitive touch screen

Video

Pixel: 2 MP

Lens: × 2

Video standard: PAL (Default) and NTSC

Network

Wired network: 10 M/100 M self-adaptive

Interface

Network interface: 1

RS-485: 1

Wiegand: 1

Lock output: 1

Exit button: 1

Door contact input: 1

TAMPER: 1

USB: 1

Capacity

Card capacity: 3,000

Face capacity: 1,500

Fingerprint capacity: 3,000

Event capacity: 150,000

Authentication

Card type: Mifare 1 card

Card reading frequency: 13.56 MHz

Face recognition duration: ＜0.2 s

Face recognition accuracy rate: ＞99%

Face recognition distance: 0.3 to 1.5 m

Fingerprint recognition duration: ＜1 s

Function

Face anti-spoofing: Support

Audio prompt: Support

Time synchronization: Support

General

Power supply: 12 VDC/1 A (power adapter included)

Working temperature: -10 °C to 40 °C (14 °F to 104 °F)

Working humidity: 0 to 90% (No condensing)

Dimensions: 118.4 mm × 118.4 mm × 21.8 mm

Application environment: Indoor

Installation: Wall Mounting; Base Mounting

Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean; Japanese
