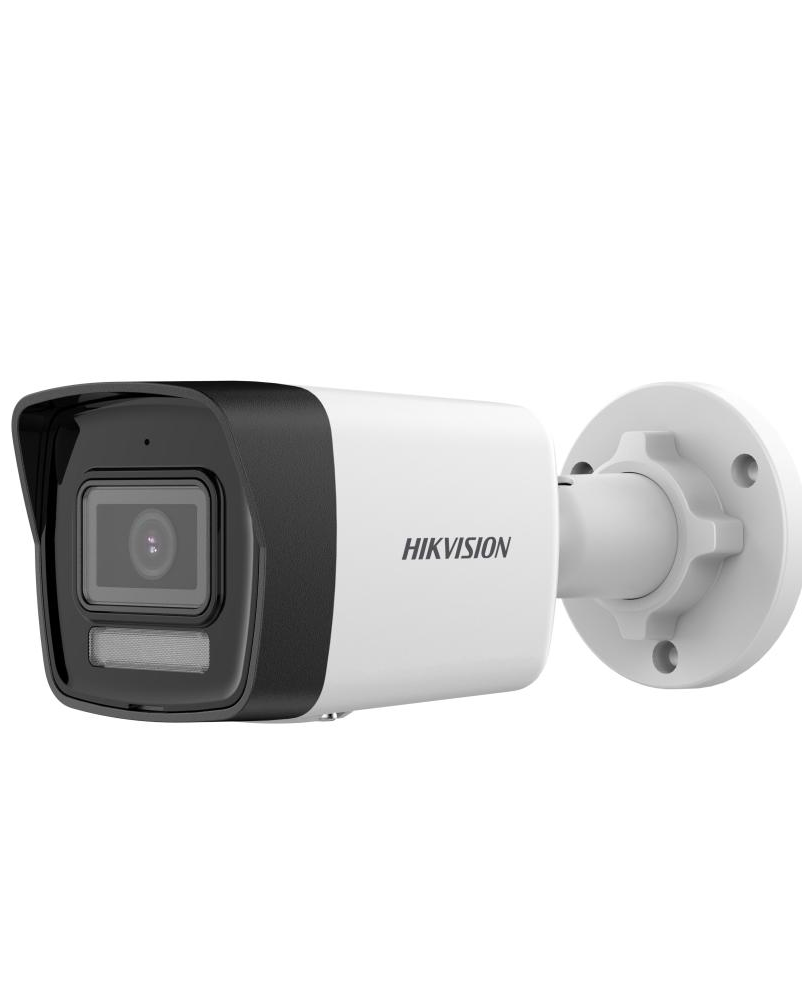

Hikvision DS-2CD1023G2-LIUF Fixed Bullet Network Camera

Camera

Image Sensor: 1/2.9" Progressive Scan CMOS

Max. Resolution: 1920 × 1080

Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Time: 1/3 s to 1/100,000 s

Day & Night: IR cut filter

Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Lens Type: Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°

4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°

Lens Mount: M12

Iris Type: Fixed

Aperture: F1.6

DORII

2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m

4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

Illuminator

Supplement Light Type: IR, White Light

Supplement Light Range: Up to 30 m

Smart Supplement Light: Yes

IR Wavelength: 850 nm

Video

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate: 32 Kbps to 8 Mbps

H.264 Type: Baseline Profile, Main Profile, High Profile

H.265 Type: Main Profile

Bit Rate Control: CBR, VBR

Region of Interest (ROI): 1 fixed region for main stream

Audio

Audio Type: Mono sound

Environment Noise Filtering: Yes

Audio Sampling Rate: 8 kHz/16 kHz

Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate

64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to

160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)


Wide Dynamic Range (WDR): Digital WDR

SNR: ≥ 52 dB

Day/Night Switch: Day, Night, Auto, Schedule

Image Enhancement: BLC, HLC, 3D DNR

Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Privacy Mask: 4 programmable polygon privacy masks

Interface

Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage: -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Microphone: Yes

Reset Key -F: Yes
