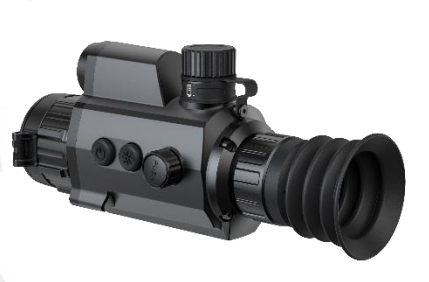

HIKMICRO PH35L Thermal Image Scope (384 × 288 pixel)

Thermal Module

Image Sensor: Uncooled Focal Plane Array

Max. Resolution:  384 × 288

Frame Rate:  50 Hz

Pixel Interval:  12 μm

Response Waveband:  8 μm to 14 μm

NETD:  < 35 mK (25°C, F# = 1.0)

Lens (Focal Length):  35 mm

Detection Range:  1800 m

Field of View:  7.53° × 5.65°

Min. Focusing Distance:  2 m

Aperture:  F1.0

Magnification:  3.03×

Image Display

Display:  1024 × 768, 0.39 inch, OLED

Image:  Mode Black Hot, White Hot, Red Hot, Fusion

FFC (Flat Field Correction):  Mode Auto, Manual, External Correction

Exit Pupil:  6 mm

Eye Relief:  45 mm

Diopter (Range):  -5 D to 3 D

Power Supply

Battery Type:  One Rechargeable Lithium battery

Battery Operating Time: 6 hours continuous running (@25°C, Wi-Fi and CVBS off)

Battery Capacity Display:  Yes

Anti-reverse Battery Connection:  Yes

Overvoltage Protection:  Yes

Type-C Power Supply:  5 V DC/2 A, USB Type-C interface3, Supports external power supply

General

Work Temperature/Humidity:  -30°C to 55°C (-22°F to 131°F)

Protection Level:  IP67

Dimension:  200.38 × 66.32 × 87.10 mm (7.89 × 2.61 × 3.43 inch)

Weight:   < 518 g without eyepiece and batteries

Port:  Type-C

Laser Rangefinder

Safety Class for Laser:  Class  1

Wavelength:   905 nm

Max. Measuring Range:   600 m

Measurement Accuracy:   ± 1 m

Min. Measuring Range:   10 m
