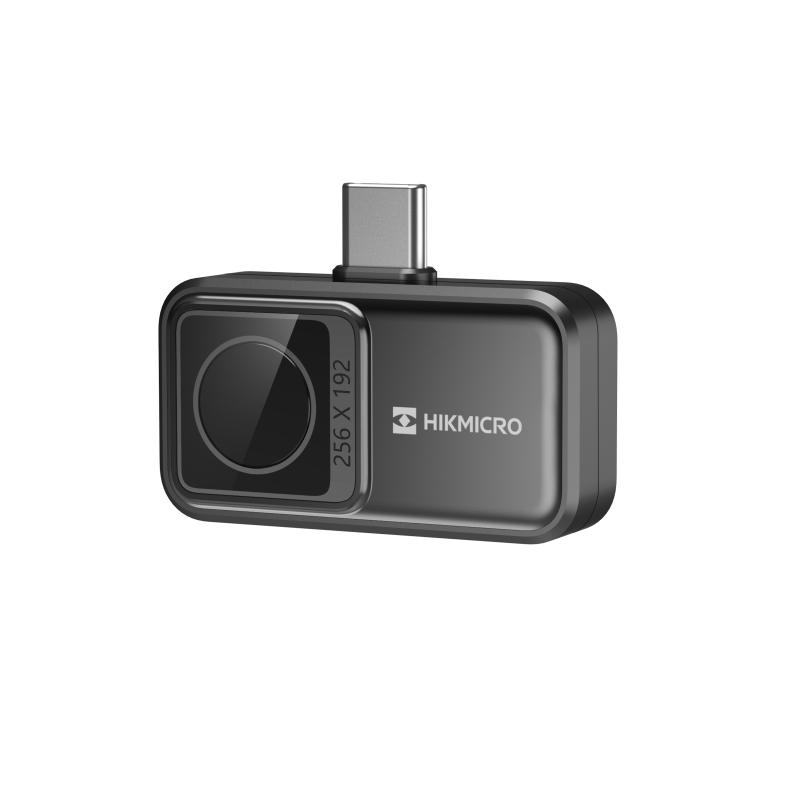

HIKMICRO Mini2 V2 Infrared Smartphone Camera (256 × 192; -20°C ~ 400°C)

Infrared Image:

IR Resolution: 256 × 192 (49,152 pixels)

NETD: < 40 mK (@ 25 °C, F#=1.0)

Image Frequency: 25 Hz

Detector Pitch: 12 μm

Spectral Range: 7.5 to 14 μm

Focal Length: 3.5 mm

F-number: F1.0

Field of View (FOV): 50° × 37.2°

Focus Mode: Focus Free

SuperIR: Yes, on captured images and live view

Min. Focus Distance: 0.2 m (0.66 ft)

Image Display:

Image Modes: Thermal, PIP

Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined

Measurement and Analysis:

Object Temperature Range: -20°C to 400°C(-4°F to 752°F )

Accuracy: Max (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)

Measurement Tools: Center Spot, Hot Spot, Cold Spot, User-definable: 3 spots, 3 rectangles and 1 line .

Level and Span Mode: Auto/Manual

General:

Power Consumption: 360 mW

Protection Level: IP40

Drop Test Height: 1 m (3.28 ft)

Working Temperature Range: -10°C to 50°C (14°F to 122°F )

Storage Temperature Range: -20°C to 60°C (-4°F to 140°F )

Weight: Approx. 20 g (0.044 lb)

Dimension: 42 × 22.5 × 11.2 mm (1.65 × 0.89 × 0.44 in)

Interface: USB-C Android, USB-C iOS, Lightning iOS (Includes a Lightning to USB-C adapter)

Device Compatibility: iOS (version 14 and later), Android (version 7 and later) smartphones and tablets, or Windows devices

Software Compatibility: HIKMICRO Viewer app for iOS and Android, HIKMICRO Analyzer software for Windows
