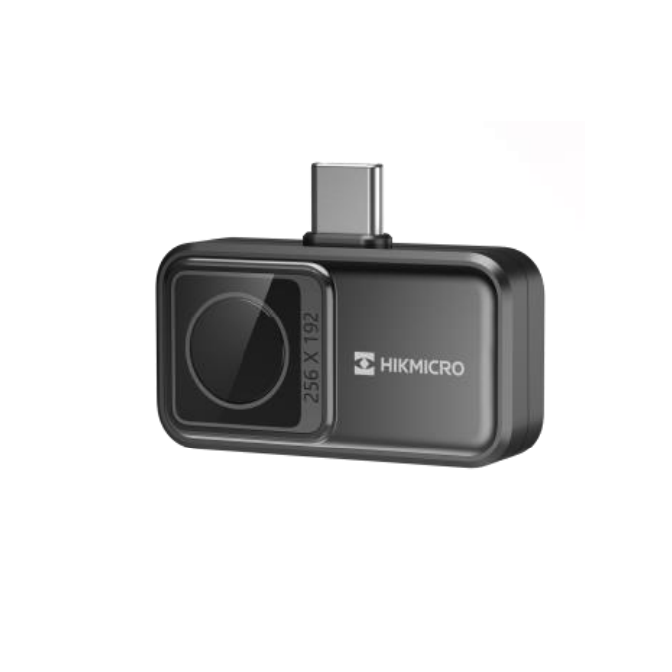

THAY THẾ BẰNG MODEL HIKMICRO Mini2 V2
Infrared Image
IR Resolution: 256 × 192 (49,152 pixels)
NETD: < 40 mK (@ 25°C, F#=1.0)
Image Frequency: 25 Hz
Detector Pitch: 12 μm
Spectral Range: 7.5 to 14 μm
Focal Length: 3.5 mm
F-number: F1.0
Field of View (FOV): 50° × 37.2°
Min. Focus Distance: 0.2 m (0.66 ft)
Focus Mode: Focus Free
Image Display
Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined
Image Modes: Thermal/Fusion
Measurement and Analysis
Object Temperature Range: -20°C to 350°C(-4°F to 662°F)
Accuracy: Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Measurement Tools: Center Spot, Hot Spot, Cold Spot; User-definable: 3 spots, and 3 rectangles.
Level and Span Mode: Auto/Manual
General
Power Consumption: 360 mW
Protection Level: IP40
Drop Test Height: 1 m (3.28 ft)
Working Temperature Range: -10°C to 50°C (14°F to 122°F )
Storage Temperature Range: -20°C to 60°C (-4°F to 140°F )
Weight: Approx. 20 g (0.044 lb)
Dimension: 42 × 22.5 × 11.2 mm (1.65 × 0.89 × 0.44 in)
