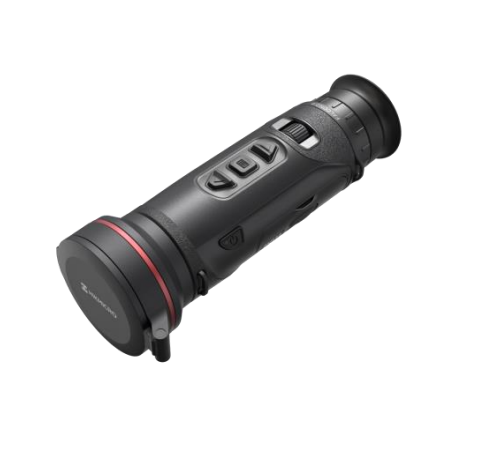

HIKMICRO FQ50 2.0 Thermal Monocular (640 × 512)

Thermal Module

Image Sensor: VOx Uncooled Focal Plane Arrays

Max. Resolution: 640 × 512

Frame Rate: 50 Hz

Pixel Interval: 12 μm

Response Waveband: 8 μm to 14 μm

NETD: Less than 15 mK (@25°C), F#=1.0

Lens (Focal Length): 50 mm, F0.9

Focus Mode: Rear Focus Wheel

Min. Focusing Distance: 5.0 m

Magnification: 2.7× to 21.6× (8×)

Field of View (H × V), Degrees / m @100 m: 8.8° × 7.0° / 15.4 m × 12.2 m

Detection Range: 2600 m

Image Display

Display: 1920 × 1080, 0.49 inch, OLED

Contrast Adjustment: Yes

Brightness Adjustment: Yes

Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome

Exit Pupil: 8 mm

Eye Relief: 15 mm

Diopter (Range): -5 D to +3 D

Tone Adjustment: Cold, Warm

Zoom Pro: Yes

HSIS (HIKMICRO Shutterless Image System): Yes

Image Pro 2.0: Yes

System

Storage: Built-in Memory Module (64 GB)

Record Video: Yes

Capture Snapshot: Yes

Local Album: Yes

Standby Mode: Yes

PIP: Yes

Hotspot: 2.4/5 G WiFi Waveband

Hot Track: Yes

Distance Measurement: Yes

Audio Recording: Yes

Power Supply

Battery Type: Replaceable and Rechargeable 21700 Battery

Battery Operating Time: ≥6.5 h (@25°C, WiFi, Zoom Pro on)

Type-C Power Supply: 5 V DC, 2 A

External Power Supply: Supports External Power Supply, Support Direct Charging

General

Working Temperature/Humidity: From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less

Protection Level: IP67

Dimension: 205 mm × 69.6 mm × 82.9 mm

Weight: 569.5 g with Battery

Datasheet
