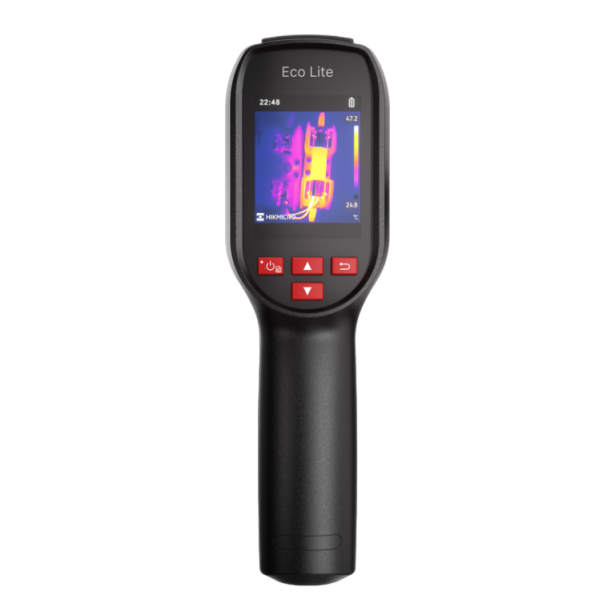

HIKMICRO Eco lite Handheld Thermal Imager (96×96 IR, -20~550°C, 50° × 50°, F1.0)

Infrared Image

IR Resolution: 96 × 96 (9,216 pixels)

ODE: Yes

Distance to Spot Ratio (D:S): 15:1

NETD: < 50 mK (@ 25 °C, F# = 1.0)

Image Frequency: 25 Hz

Detector Pitch: 12 μm

Spectral Range: 7.5 – 14 μm

Focal Length: 1.35 mm

F-number: F1.0

Field of View (FOV): 50° × 50°

Spatial Resolution (IFOV): 8.89 mrad

Minimum Focus Distance: 0.1 m (0.33 ft)

Focus Mode: Focus Free

Image Display

Display: 2.4" LCD screen, 240 × 320 resolution

Image Modes: Thermal

Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Blue Yellow

Color Alarm: Above alarm, Below alarm

Measurement and Analysis

Object Temperature Range:

Range 1: -20 °C to 150 °C (-4 °F to 302 °F)

Range 2: 100 °C to 550 °C (212 °F to 1022 °F)

Accuracy: ±2 °C / ±3.6 °F or ±2% at ambient temperature 25 °C (77 °F) and object temperature above 0 °C (32 °F)

Thermometer Mode: Yes

Measurement Tools: Center spot, Max spot, Min spot

Level and Span Mode: Auto

Data Storage and Communication

Storage Media: Built-in 80 MB

Image Storage Capacity: Approx. 500–1,000 images (actual storage may vary depending on scene complexity)

General

USB Interface: USB Type-C

Battery Type: Rechargeable Li-ion battery

Battery Charging Time: Approx. 3 hours (adapter output: 5 V / 2 A)

Battery Operating Time: Approx. 14 hours

Protection Level: IP54

Drop Test Height: 1 m (3.28 ft)

Working Temperature Range: -10 °C to 50 °C (14 °F to 122 °F)

Storage Temperature Range: -40 °C to 70 °C (-40 °F to 158 °F)

Relative Humidity: < 95% non-condensing

Weight: Approx. 228 g (0.529 lb)

Dimensions: 196 × 59 × 78 mm

Tripod Mounting: UNC 1/4”-20
