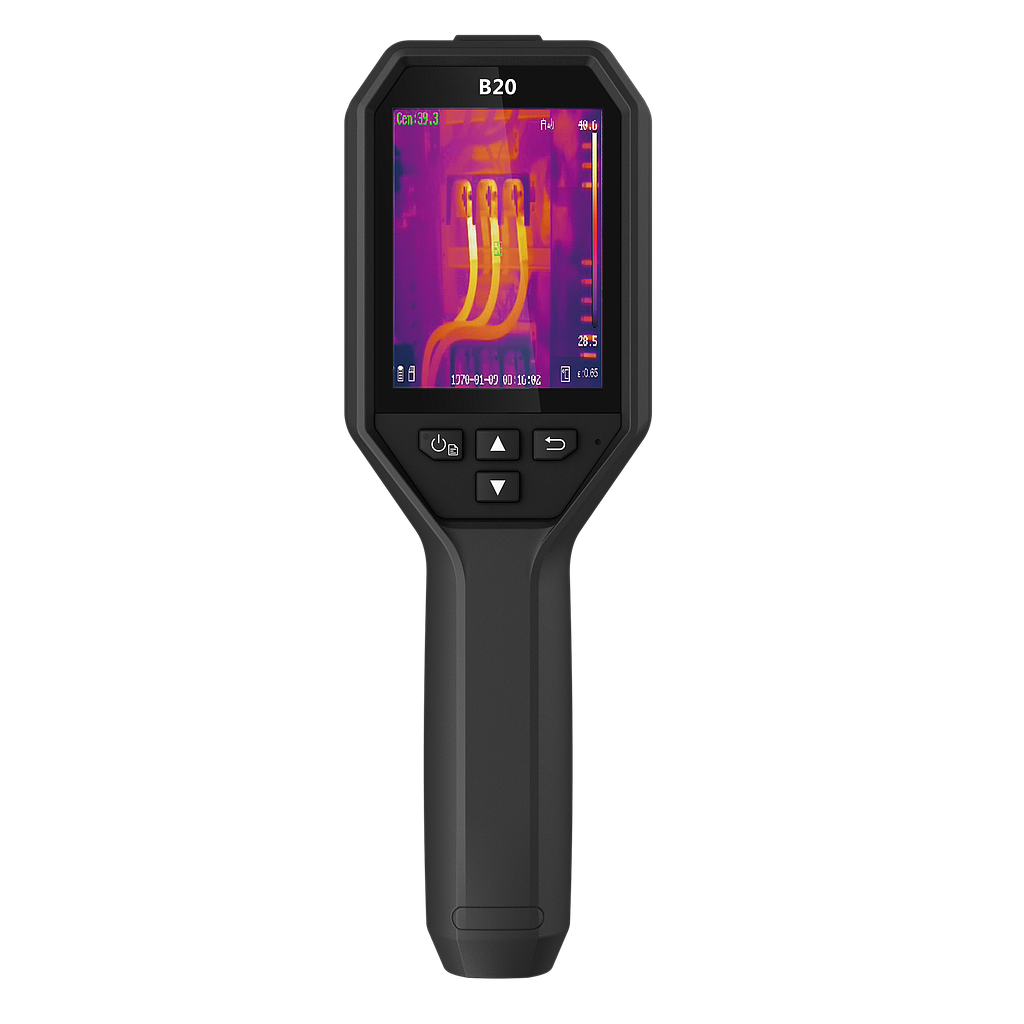

HIKMICRO B20 Handheld Thermography Camera (-20~550°C; 256x192px; EMMC 16GB)

Thermal Module

Image sensor: Vanadium Oxide Uncooled Focal Plane Arrays

IR resolution: 256 x 192 (49 152 pixels)

Temperature measurement range: -20°C - 550°C (-4°F~1022°F)

Pixel pitch: 12μm

Spectrum range: 8-14μm

NETD < 40mK (@25°C, F#=1.0)

3mm lens

Thermographic accuracy: ±2℃ / ±2%

Focal length: 3.6mm

FOV (Field of View): 37.2°×50°

Minimum focus distance: 0.3 m (0.98 ft)

Focus: Fixed

IFOV (Spatial Resolution): 3.3 mrad

Image frequency: 25Hz

Aperture: F1.0

Optical Module

Picture resolution: 1600 × 1200 (2 MP)

FOV: 55°× 42°

Focal length: 2mm

Display: 240 × 320 Resolution, 3.2’’ LCD Screen

Storage

Storage media: EMMC (16 GB)

Image storage capacity: 90 000 Images

Image file format: BMP with Measurement Data Included

Power System

Power supply: 3.7 V DC/0.5 A

Power consumption: 1.8 W

Battery type: Rechargeable Li-ion Battery

Battery operating time: 6 Hours Continuous Running

Battery charging time: 3 Hours

General

Menu language: 21 Languages

Working temperature range: -10°C~50°C (14°F~122°F)

Storage temperature range: -20°C~60°C (-4°F~140°F)

Protection level: IP54

Drop Test Height: 2 m (6.56 ft)

Interface: USB Type-C

Weight: Approx. 360 g (0.79 lb)

Dimension: 221.7 mm × 73.5 mm × 80.5 mm (8.73” × 2.89” × 3.17”)

Wi-Fi: 802.11 b/g/n (2.4GHz)
