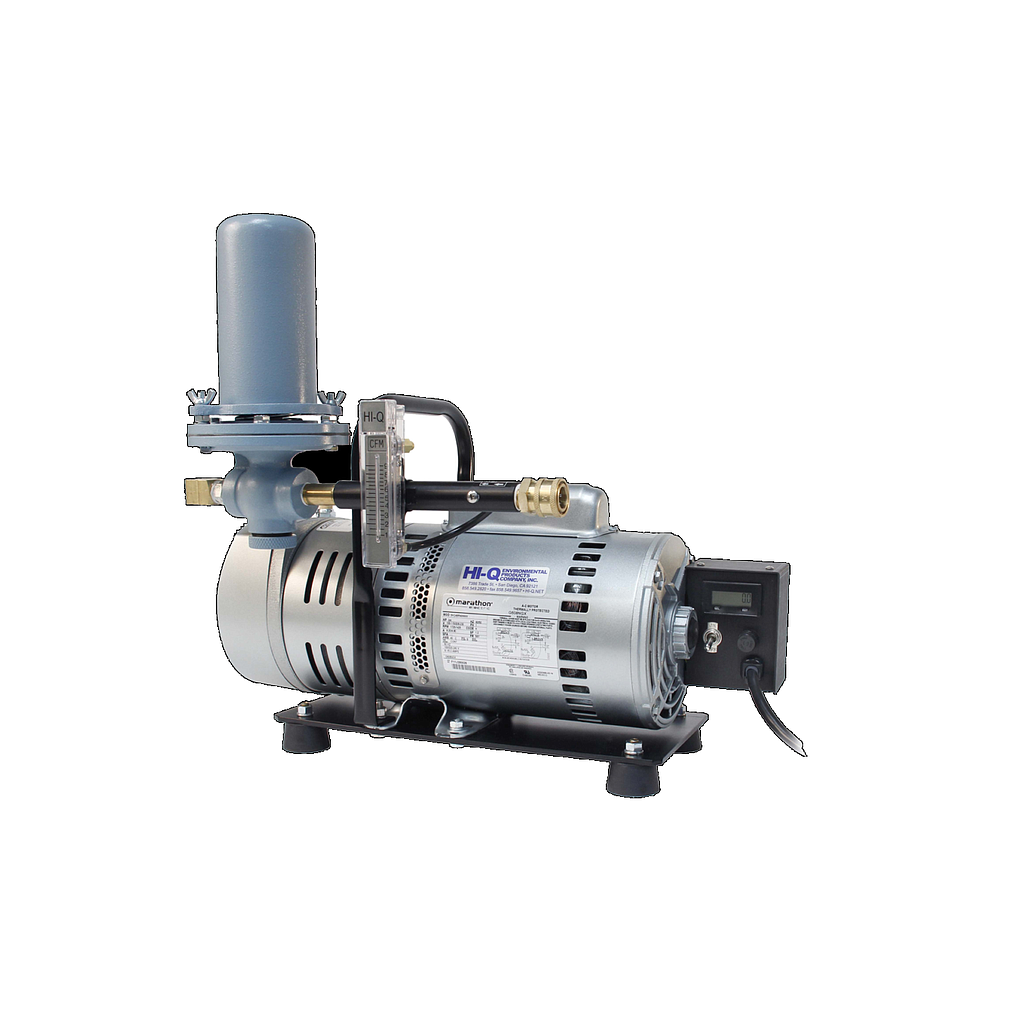

HI-Q VS23-0523CV-EETXX Continuous Duty Air Samplers (115 VAC; 115 LPM; 4,0 CFM)

- Air Mover: Oilless, Rotary Vane, Vacuum Pump with 1/4, or 3/4 HP, 115 or 230 VAC,, Shock Mounted Motor.

- Control Valve (MCV-260): Mechanical, Heavy Duty, Automatic Flow Control Valve. This valve controls the air flow rate to ±5% of the operator set flow rate.

- Control Valve (MCV-22): Mechanical, Heavy Duty, Differential Type Automatic Flow Controller. Maintains operator pre-set flow rate within 5%.

- Timer Option: Replace “XX” with: 11 for Hrs & Tenths of Hrs / 13 for Min. & Tenths of Min. / 10 for Hrs & Min.

- Filter Holders: See Filter Holders For Air Sampling, “RV-Series”

- Filter Cartridges: See Analytical Cartridges

- Filter Paper: See Filter Paper For Air Sampling

- Air Flow Calibrator: See Air Flow Calibrators

- Replacement See Replacement Rotary Vane Vacuum Pumps & Service Kits in the

- Pumps/Kits: “Air Sampling Accessories” section of this catalog

- Net Wt (Lbs): 35lbs.

- Power (VAC): 115 VAC

- Motor (HP): 1/4 HP

- Max Vac.: 26" Hg

- Max LPM ( open air): 115 LPM

- Max CFM ( open air): 4.0 CFM

- On/Off Switch w/Fuse: Yes

- Elapsed Timer: Yes

- NRTL*Listed: Yes
