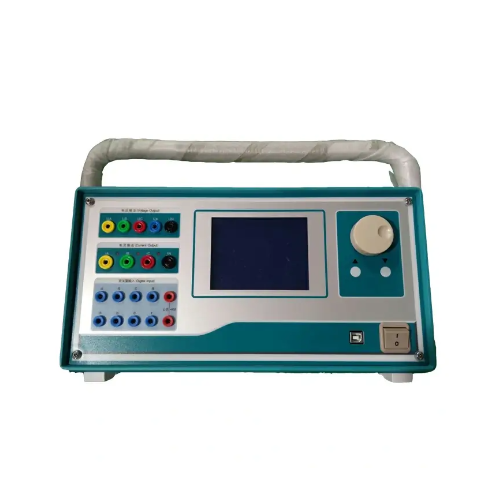

HB.ZHIWEI ZWJD301 Relay Protection Tester (0~1000Hz)

Technical Parameter

AC current output range: 0~40A

DC current output range: 0~±10A / phase, 0~±30A / 3 parallel

AC voltage output range: 0~120V

DC voltage output range: 0~±160V

Frequency range ( fundamental): 0~1000Hz

Time measuring range: 0.1ms ~ 9999s

accuracy of measurement: <0.1ms

Harmonic time: 0~20

Technical Parameter

AC current output

Phase current output (effective value): 0~40A, Output Precision 0.2 degree

3 phase parallel current output (effective value): 0~120A

A Long-time Phase current: 10A

Maximum output power of Phase current: 450VA

Maximum output power of 3 parallel current: 900VA

Maximum Permitted work time of 3 parallel current: 10S

Frequency range ( fundamental): 0~1000Hz

Harmonic time: 0~20

DC current output

Current output ：0～±10A / phase, 0～±30A / 3 parallel

Output Precision： 0.5 degree

AC voltage output

Phase voltage output (effective value) ：0~120V Output Precision 0.2 degree

Line voltage output (effective value) ：0~240V

Phase voltage / Line phase output power： 80VA / 100VA

Frequency range (fundamental)： 0~1000Hz

Harmonic time ：0~20

DC voltage output

Phase voltage output range： 0～±160V Output Precision 0.5 degree

Line voltage output range ：0～±320V

Phase voltage / Line phase output power： 70VA / 140VA

10 path digital input and 8 path digital output

Time measuring range ：0.1ms ～ 9999s ，accuracy of measurement ：＜0.1ms
