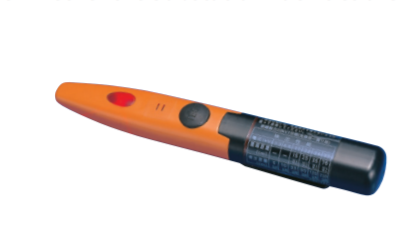

HASEGAWA HXC-3K Portable Live Part Detector (3.3 kV~77 kV)

■ Specifications:

Working voltage range: 3.3 kV to 77 kV (Non-contact type for 11 kV or higher)

Operating temperature range: －20℃～＋40℃

Frequency: 50/60Hz

Battery: LR44(1.5V) × 2 pcs

Dielectric strength: Between tip part and grip of detector: 20 kVAC, 1 min

(Leakage current: 1 mA or less)

Detection performance:

- Operation starting voltage: 400 V ± 20%

- Detectable distance: 5 cm at 3.3 kV, 10 cm at 6.6 kV

Operation status display:

- Light: Can be confirmed at the distance of 50 cm in the luminance of 8,000 lux

- Sound: 50dB or more (1m apart)

Dimensions: 155mm

Weight: 85g

＊Without the casing
