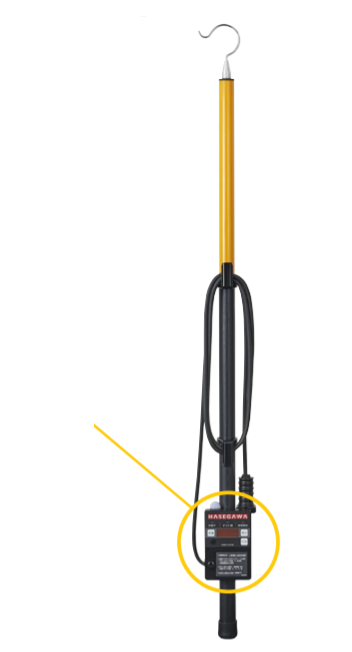

HASEGAWA HVC-1.5N3 Voltage Detector for DC Overhead Contact Wire (DC 1500V)

■Specifications

Working voltage range: DC 1500V

* Voltage detection of negative potential is not possible.

Operation starting voltage (Voltage to ground): DC750V±50V

Display:

- Operation display (charging): Red LED and buzzer

- Check of earth wire (Earth wire is OK): Green LED

- Voltage display:

+ Range: 0VDC to 1999VDC

+ Resolution: 1V

+ Accuracy: within ±5%±5V

Volume adjustment for buzzer sound:

+ Each time when the sound volume push-button switch is pressed, the cycle of High → Medium → Low → High ----- is repeated.

+ Sound volume at a distance of 1m

+ High: 75 dB or more; Medium: 55 to 70 dB; Low: 50dB or less

Output voltage at test: DC1000V±200V

Dielectric strength: Contact tip (Metal fitting) ‒ Grounded part 4kVAC, 1 min

Leakage current: 1 mA or less at dielectric strength test

Battery: R6 or LR6(1.5V) × 4 pcs

Operating temperature range: 0℃～＋50℃

Weight: About 2.3kg

■ Accessory: Bag for housing
