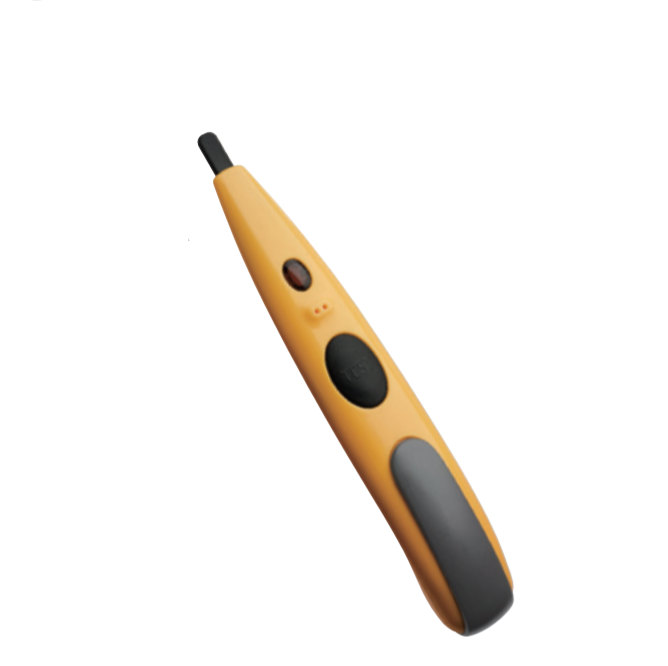

HASEGAWA HTE-610-Y Low Voltage Detector (AC50V~1000V 50/60Hz)

Working Voltage Range: AC50V~1000V 50/60Hz

Insulation Resistance: Between contact tip and clip (grip): 100ΜΩ minimum with a 500V megger

Dielectric Strength: Ditto:2000V-1 minute

Leakage Current: Ditto: 100µA maximum

Impulse Withstand: Ditto:8000V-10 cycles of positive/negative (IEC61010-1 CAT III 1000V equivalent)

Operation Starting Voltage (Voltage to ground)

Maximum sensitivity: AC40V maximum

Minimum sensitivity: Not operation at AC100V

Operation at AC200V

Ex-Factory: AC40V±10V (when the contact tip is in contact with an internal standard insulated cable (600V-IV2mm²))

Operation Status Display

Light: Intermittent red light visible in 8000lx ambient

Sound: Intermittent sound of 50dB minimum in 30cm distance

Operating Temperature Range: 0°C ~ +40°C

Weight: 22g(including batteries)

Battery: 2 alkaline button cells LR44(1.5V)

Life of the battery: New battery: in continuous operation 10 hours: in storage 1.5 years
