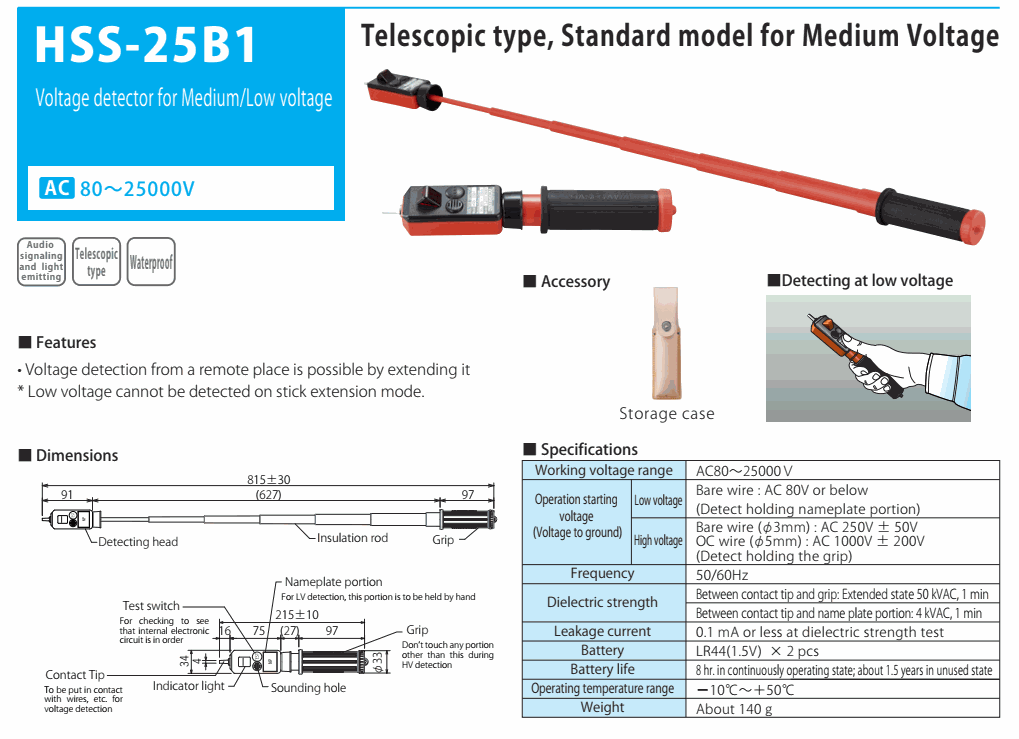

■ Specifications
Working voltage range: AC80～25000V
Operation starting voltage (Voltage to ground):
Low voltage: Bare wire: AC 80V or below (Detect holding nameplate portion)
High voltage:
Bare wire (φ3mm): AC 250V ± 50V
OC wire (φ5mm): AC 1000V ± 200V
(Detect holding the grip)
Frequency: 50/60Hz
Dielectric strength:
• Between contact tip and grip: Extended state 50 kVAC, 1 min
• Between contact tip and name plate portion: 4 kVAC, 1 min
Leakage current: 0.1 mA or less at dielectric strength test
Battery: LR44(1.5V) × 2 pcs
Battery life: 8 hr. in continuously operating state; about 1.5 years in unused state
Operating temperature range: －10℃～＋50℃
Weight: About 140 g
* Low voltage cannot be detected on stick extension mode.
■ Features:
• Voltage detection from a remote place is possible by extending it
