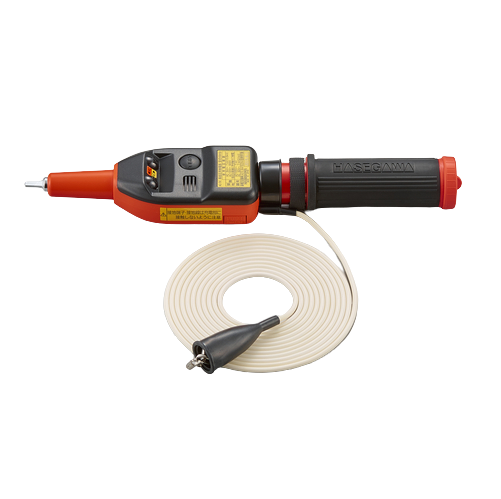

HASEGAWA HSN-6A1 Voltage Detector For Medium/Low Voltage (100V-7kVAC; 50V-7kVDC)

Working voltage range:

- Without grounding wire: AC: 3kV - 7kV (10.5kV AC dielectric strength test for fully extended device)

AC: 100V – 600V (with touching the device nameplate) [Operation Mode 3]

- With grounding wire attached: AC: 100V - 7kV, DC: 50V – 7kV (21 kV DC dielectric strength test for fully extended device)

Leakage current:

- Between contact tip and name plate: 4 kVAC, 1 min, 1 mA or less

- Between contact tip and grip:

+ (Insulating stick: Shortened) 20 kVAC, 1min, 100 μA or less

+ (Insulating stick: Extended) 50 kVAC, 1min, 100 μA or less

- Between contact tip and grounding clip: 26 kVAC, 1 min, 1 mA or less

- Between core of the grounding plug and outside the covering: 22 kVDC, 1 min

Detection Indicators:

- Visual: AC: red display, DC: orange display

- Visible in up to 8000 Lux environment

- Audible: intermittent sound, 60 dB @ 1 m / 3.3 ft

Frequency: 50/60 Hz, dual-use

Operating temperature: -10 ℃ to 50 ℃ 14 °F to 122 °F

Structure: Drip-proof construction

Batteries: LR44(1.5V) × 2 pcs

Included accessories: Slip-on cover, grounding wire (3 m/9.9 ft)
