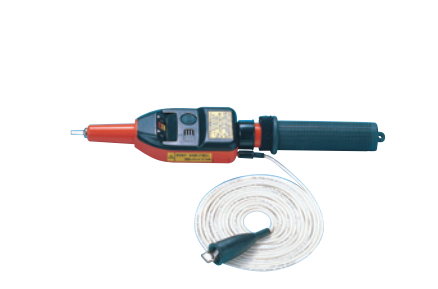

HASEGAWA HSN-6A Voltage Detector For Medium/Low Voltage (AC100~7000 V; DC50~7000 V)

■ Specifications

Working voltage range:

-Without grounding wire: AC

• 100 V to 600 V (Voltage detection by touching the name plate with a hand)

• 3 kV to 7 kV (With extended insulating stick)


-With grounding wire:

AC: 100 V to 7000 V (Usable up to 10.5 kV for withstand voltage test)

DC: 50 V to 7000 V (Usable up to 21 kV for withstand voltage test)

Frequency (AC): 50/60Hz

Leakage current:

- Between contact tip and name plate: 4 kVAC, 1 min, 1 mA or less

- Between contact tip and grip:

• (Insulating stick: Shortened) 20 kVAC, 1min, 100 μA or less

• (Insulating stick: Extended) 50 kVAC, 1min, 100 μA or less


- Between contact tip and grounding clip: 26 kVAC, 1 min, 1 mA or less

- Between core of the grounding plug and outside the covering: 22 kVDC, 1 min

Battery: LR44(1.5V) × 2 pcs

Operating temperature range: －10℃～＋50℃

Weight: About 290g

■ Accessory: Storage case; grounding wire (3m)
