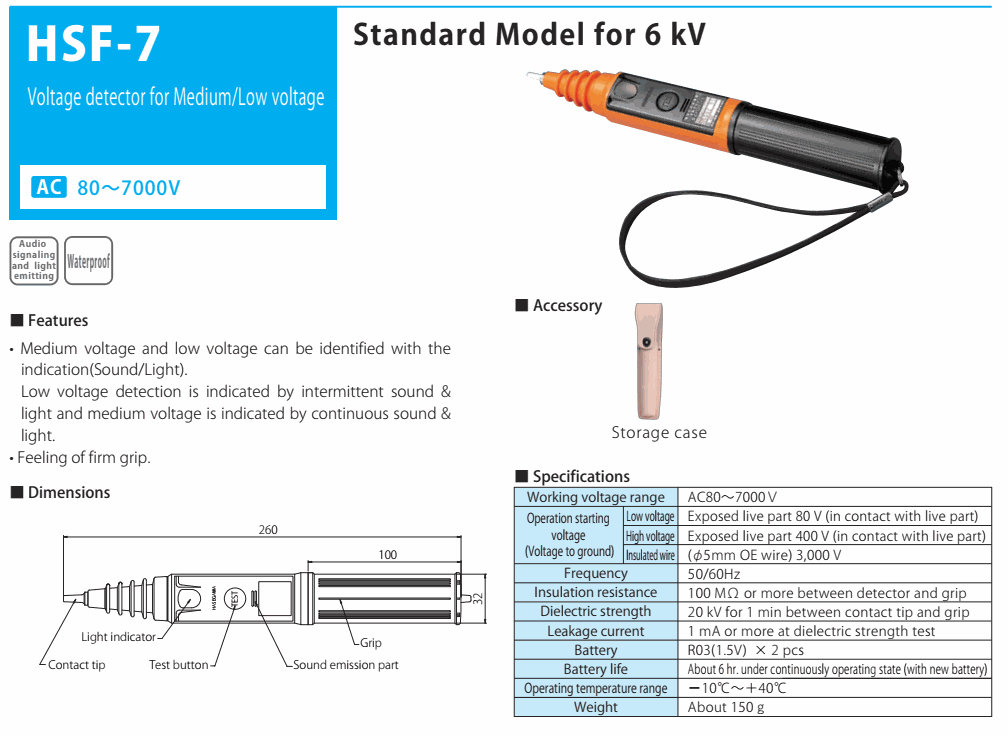

■ Specifications
Working voltage range: AC80～7000V
Operation starting voltage (Voltage to ground):
Low voltage: Exposed live part 80 V (in contact with live part)
High voltage: Exposed live part 400 V (in contact with live part)
Insulated wire: (φ5mm OE wire) 3,000 V
Frequency: 50/60Hz
Insulation resistance: 100 MΩ or more between detector and grip
Dielectric strength: 20 kV for 1 min between contact tip and grip
Leakage current: 1 mA or more at dielectric strength test
Battery: R03(1.5V) × 2 pcs
Battery life: About 6 hr. under continuously operating state (with new battery)
Operating temperature range: －10℃～＋40℃
Weight: About 150 g
■ Accessory: Storage case
■ Features
• Medium voltage and low voltage can be identified with the indication(Sound/Light).
Low voltage detection is indicated by intermittent sound & light and medium voltage is indicated by continuous sound & light.
• Feeling of firm grip.
