HASEGAWA HRD-27S Residual Electric Charge Discharging Stick (DC 27kV)

■Specifications

Discharge voltage: DC27kV (Max)

Discharge capacity: 1μF (Max)

Discharge time: 5 seconds or less (DC27 kV, 50 V or less at 1 µF)

Discharge resistance: 600kΩ

Operation stop voltage: DC40V ±20%

Indication (Light/sound): Light: It shall be able to confirm in the luminance of 8,000 lux Sound: 50 dB or more at a distance of 2m

Battery: LR44 alkaline button cell (1.5 V) x2 pcs

Battery life: Approx. 4 hours of continuous operation

Operating temperature range: -10℃~+40℃

Weight: About 800g

Accessories: Bag for housing, contact tip (hook metal fitting), each 1 pc

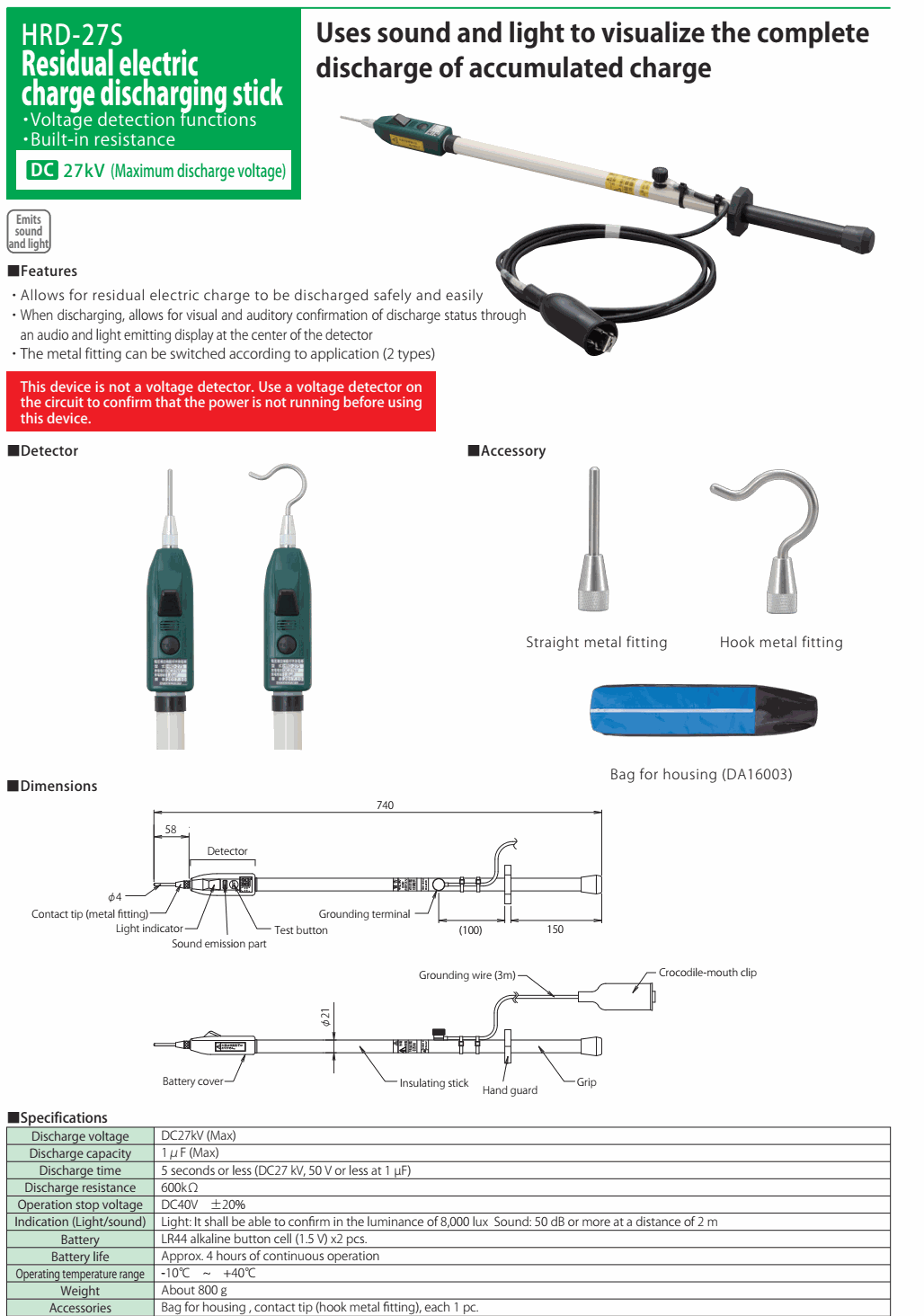

Datasheet
