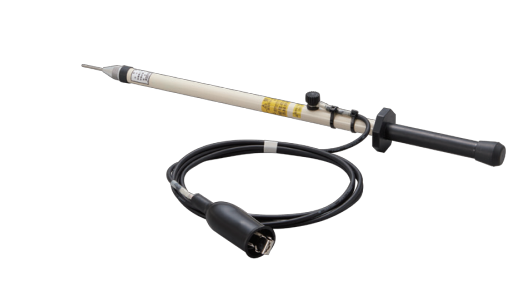

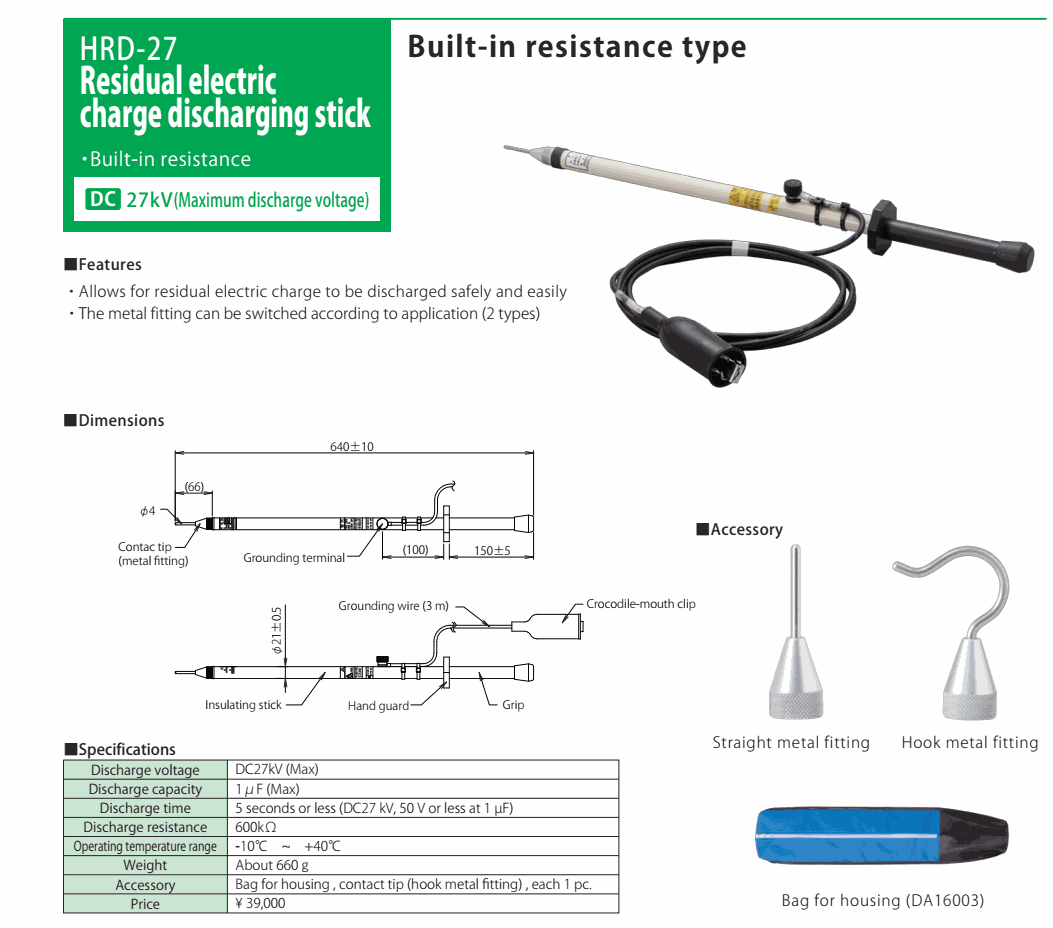

HASEGAWA HRD-27 Residual Electric Charge Discharging Stick (DC 27kV)

■Specifications

Discharge voltage: DC27kV (Max)

Discharge capacity: 1μF (Max)

Discharge time: 5 seconds or less (DC27 kV, 50 V or less at 1 µF)

Discharge resistance: 600kΩ

Operating temperature range: -10℃~+40℃

Weight: About 660 g

Accessories: Bag for housing, contact tip (hook metal fitting), each 1 pc.

■Features

・ Allows for residual electric charge to be discharged safely and easily

・ The metal fitting can be switched according to application (2 types)
