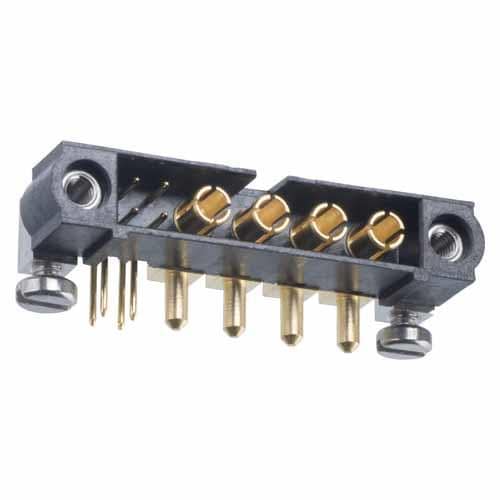

Harwin M80-5L10405M5-04-333-00-000 Power to the Board MALE ASSY HORIZONTAL BOARDMOUNT J/SCREW

Pitch: 4 mm, 2 mm

Row Spacing: 2 mm

Unit Weight: 4 g

REACH - SVHC: Details

Housing Color: Black

Contact Gender: Pin (Male)

Current Rating: 20 A, 3 A

Mounting Angle: Right

Mounting Style: Through Hole

Number of Rows: 2 Row

Voltage Rating: 800 V

Contact Plating: Gold

Contact Material: Copper Alloy, Phosphor Bronze

Housing Material: Polyphenylene Sulfide (PPS)

Termination Style: Solder

Contact Arrangement: Power/Signal

Number of Positions: 4 Power, 4 Signal

Insulation Resistance: 100 MOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
