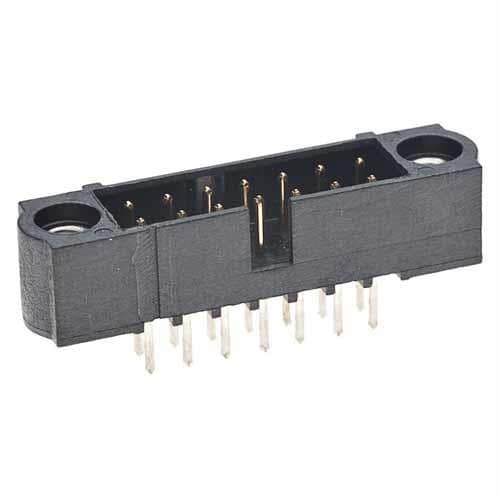

Pitch: 2 mm (0.079 in)
Row Spacing: 2 mm (0.079 in)
Unit Weight: 1 g
Housing Color: Black
Latching Type: Jackscrew
Contact Gender: Pin (Male)
Current Rating: 3 A
Mounting Angle: Straight
Mounting Style: Through Hole
Number of Rows: 2 Row
Contact Plating: Gold
Contact Material: Phosphor Bronze
Housing Material: Polyphenylene Sulfide (PPS)
Termination Style: Solder Pin
Flammability Rating: UL 94 V-0
Number of Positions: 8 Position
Insulation Resistance: 100 MOhms
Termination Post Length: 3.25 mm (0.128 in)
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
