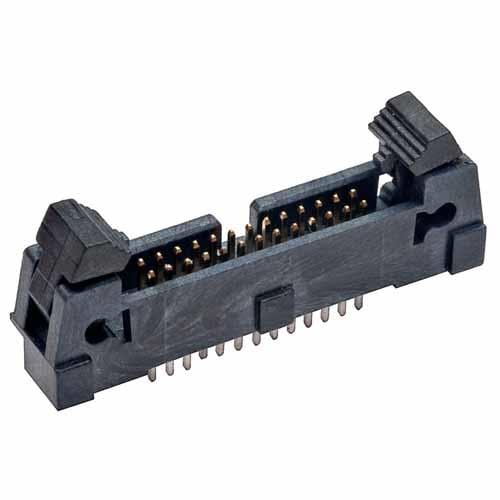

Pitch: 1.27 mm (0.05 in)
Row Spacing: 1.27 mm (0.05 in)
Unit Weight: 1.461 g
Latching Type: Eject Latch
Contact Gender: Pin (Male)
Current Rating: 1.75 A
Mounting Angle: Straight
Mounting Style: Through Hole
Number of Rows: 2 Row
Contact Plating: Gold
Contact Material: Brass
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder Pin
Mating Post Length: 3.05 mm (0.12 in)
Number of Positions: 20 Position
Insulation Resistance: 5 GOhms
Termination Post Length: 2.72 mm (0.107 in)
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
