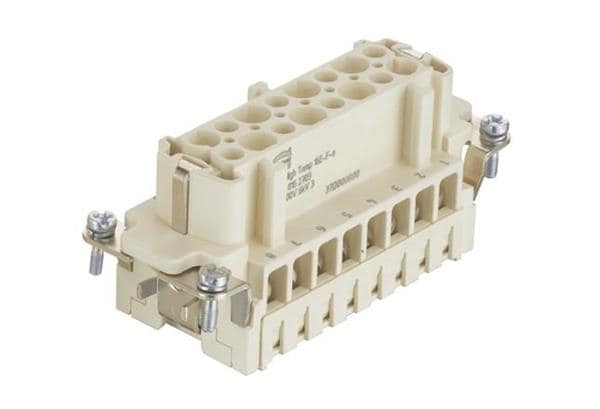

HARTING 09338162703 Inserts Han 16E Female screw insert high temp

Unit Weight: 138.668 g

For Use With: Size 16B Housings

REACH - SVHC: Details

Housing Color: White

Contact Gender: Socket (Female)

Current Rating: 16 A

Mounting Angle: Straight

Mounting Style: Panel

Number of Rows: 2 Row

Voltage Rating: 500 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 18 AWG

Contact Plating: Silver

Contact Material: Copper Alloy

Housing Material: Liquid Crystal Polymer (LCP)

Wire Gauge Range: 18 AWG to 14 AWG

Termination Style: Screw

Flammability Rating: UL 94 V-0

Housing / Hood Size: 16B

Number of Positions: 16 Position + PE

Insert / Contact Gender: Female

Maximum Operating Temperature: + 200 C

Minimum Operating Temperature: - 40 C
