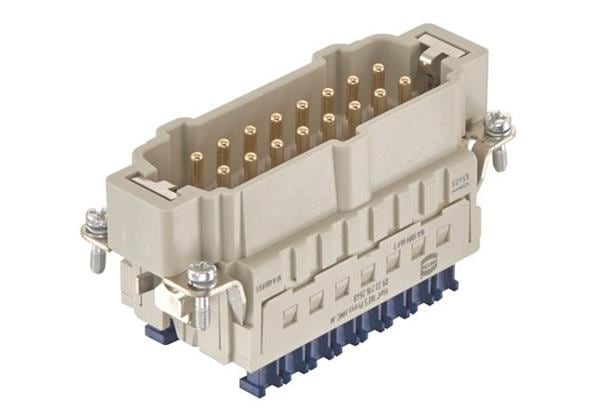

HARTING 09332162648 Inserts Han 16E ML ES Press High Mating Cycle

For Use With: Size 16B Housings

REACH - SVHC: Details

Housing Color: Gray

Contact Gender: Pin (Male)

Current Rating: 16 A

Housing Gender: Male

Mounting Angle: Straight

Mounting Style: Panel

Number of Rows: 2 Row

Voltage Rating: 500 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 26 AWG

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Polycarbonate (PC)

Wire Gauge Range: 26 AWG to 14 AWG

Termination Style: Clamp

Flammability Rating: UL 94 V-0

Housing / Hood Size: 16B

Number of Positions: 16 Position + PE

Insert / Contact Gender: Male

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
