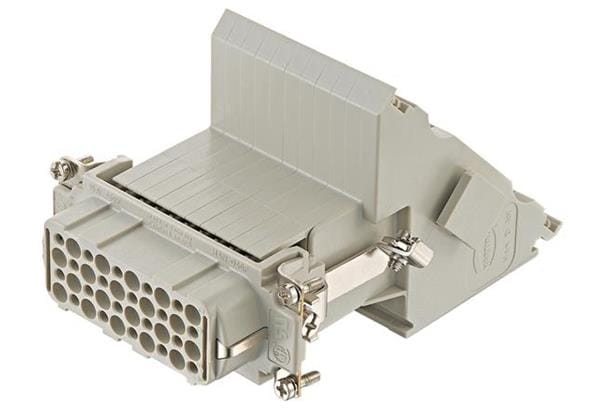

HARTING 09210404711 Inserts FEMALE INSERT 40 POLES+PE

For Use With: Size 16B Housings

Housing Color: Gray

Contact Gender: Socket (Female)

Current Rating: 10 A

Housing Gender: Female

Mounting Angle: Right Angle

Mounting Style: Panel

Voltage Rating: 250 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 24 AWG

Contact Plating: Silver

Contact Material: Copper Alloy

Housing Material: Polycarbonate (PC)

Termination Style: Screw

Flammability Rating: UL 94 V-0

Housing / Hood Size: 16B

Number of Positions: 40 Position + PE

Insert / Contact Gender: Female

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
