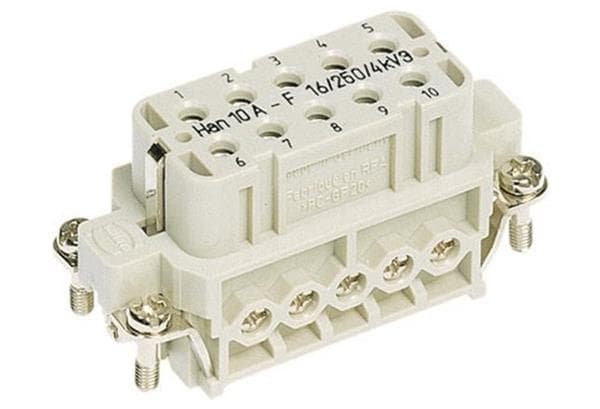

HARTING 09200102814 Inserts HanA10PosF Insert Screw w/WireProt

Unit Weight: 54 g

For Use With: Size 10A Housings and Hoods

REACH - SVHC: Details

Housing Color: Gray

Contact Gender: Socket (Female)

Current Rating: 16 A

Housing Gender: Female

Mounting Angle: Straight

Mounting Style: Panel

Voltage Rating: 250 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 18 AWG

Contact Plating: Silver

Contact Material: Copper Alloy

Housing Material: Polycarbonate (PC)

Termination Style: Screw

Flammability Rating: UL 94 V-0

Housing / Hood Size: 10A

Number of Positions: 10 Position + PE

Insert / Contact Gender: Female

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
