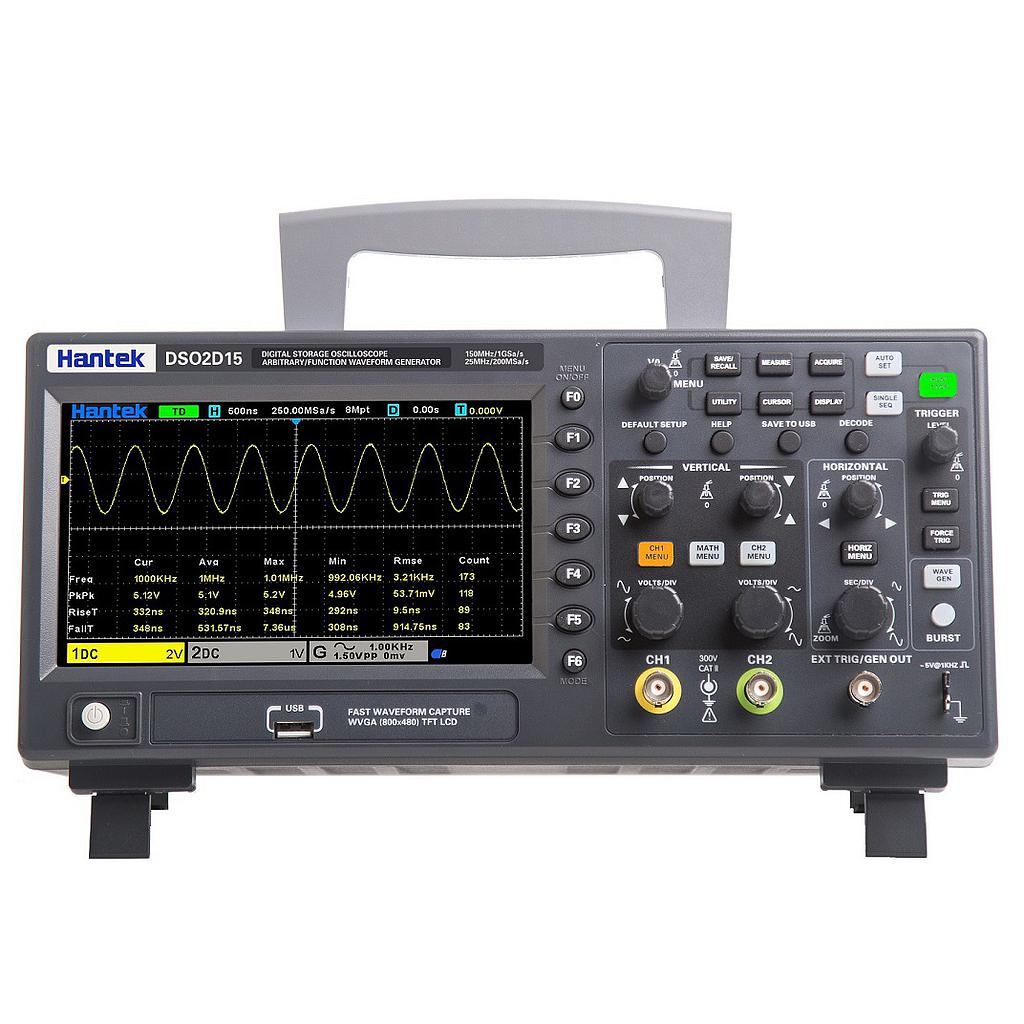

Analog Channels: 2
Bandwidth: 100MHz
Sample Rate: 1GSa/s (single channel), 500MSa/s (all channels)
Memory Depth: 8Mpts (single channel), 4Mpts (all channels)
Digital Voltmeter: 2 source, 3 digits
Input Sensitivity : 2mV/div~10V/div
Waveform Generator: 25 MHz; 1 CH
Rising Time: ≤2.4ns
Vertical Resolution : 8 bit
Vertical Sensitivity : 1 MQ: 500μV/div ~ 10 V/div
Time Base Range : 2ns/div~1 ks/div
Bandwidth Limit: 20MHz (selectable)
Trigger Type: Edge, Pulse, Video, Slope, Timeout, Window, Pattern, Interval, Under Amp
Bus and Decoding: UART, LIN, CAN, SPI, IIC
Arithmetic: Add, subtract, multiply, divide, FFT
Measurements: 32 automated measurements, with statistics
Analysis Function: Frequency counter, DVM
Acquistion Mode: Normal, Average, Peak Detect, HR (High Resolution)
Input Coupling: DC, AC or GND
Input Impedance : 1 MQ +1%
Waveform Generator:
'+ Sampling rate: 200 MSa/s
+ Vertical resolution:12 bits
+ Maximum output frequency: 25 MHz
+ Waveforms: Sine, Square, Ramp, Exp, Noise, DC, Arbitrary
Connectivity: USB host, USB device, External trigger input
Display: 7-inch 64K TFT LCD
