mV
mV Range: ±2000 mV
mV Resolution: 1 mV
mV Accuracy: ±2 mV
mV (ORP) Calibration: automatic, two point, at 0 and 350 or 1900 mV
Meter Temperature
Temperature Range : -9.9 to 120°C
Temperature Resolution: 0.1°C
Temperature Accuracy: ±0.5°C

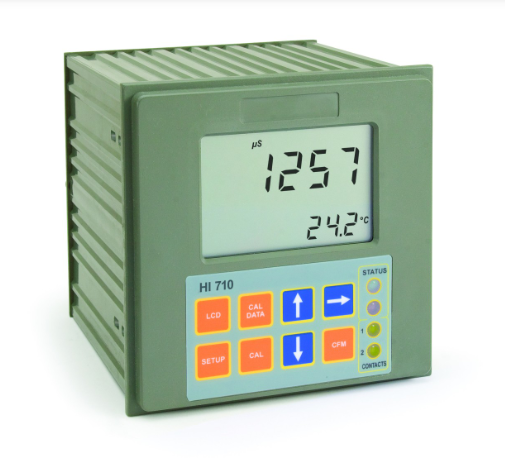

Process Control Meter
Analog Ouput Signal: galvanically isolated: 0-1 mA, 0-20 mA and 4-20 mA, 0-5 VDC, 1-5 VDC and 0-10 VDC
Digital Output Signal: RS232 bi-directional optoisolated
Power Consumption: 15 VA
Over Current Protection: 5A, 250V fast fuse
Max. Oscillation Frequency: 4 MHz
Panel Cutout: 140 x 140 mm
Alarm Relay: 1 contact output SPDT, 5A-250 VAC, 5A-30 VDC (resistive load), fuse protected (2A, 250V fast fuse)
Set Point: 1 or 2 contact outputs SPDT 5A-250 VAC, 5A-30 VDC (resistive load), fuse protected (2A, 250V fast fuse)
Power Supply: 115 VAC ±10%; 50/60 Hz
Environment: 0 to 50°C (32 to 122°F); RH max 95% non-condensing
Dimensions: 144 x 144 x 170 mm
Weight: 1.6 kg (3.5 lb.)
