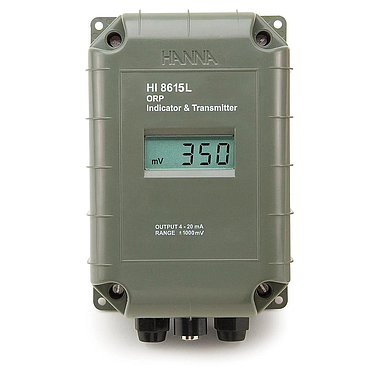

HANNA HI8615 ORP Transmitter with 4-20 mA Galvanically Isolated Output(4 to 20 mA / ±1000 mV)

mV Range: 4 to 20 mA / ±1000 mV
mV Resolution: (for “L” models) 1 mV; 0.01 mA
mV Accuracy: ±5 mV; ±0.02 mA
mV (ORP) Calibration offset: ±0.8 mA/±100mV; slope: 90 to 110%; ±0.8 mA
Recorder Output : 4-20 mA (isolated)
Load max: 500 Ohm
Display: LCD only for HI8615LN
Power Supply: HI8615N: 18-30 VDC; HI8615LN: 20-36 VDC
Environment: 0 to 50°C (32 to 122°F); RH max 95% non-condensing
IP Rating: IP65
Dimensions: 165 x 110 x 71 mm (6.5 x 4.3 x 2.8’’)
Weight: 1 kg (2.2 lb.)
Ordering Information: HI8615N and HI8615LN (with display) is supplied with instructions.

Manual
