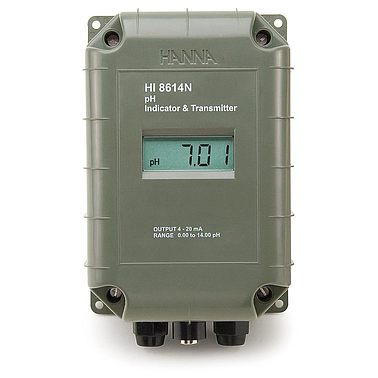

HANNA HI8614LN pH Transmitter with 4-20 mA Galvanically Isolated output; with LCD display (0.00 to 14.00 pH)

pH Range: 0.00 to 14.00 pH; 4–20 mA
pH Resolution: (for “L” models) 0.01 pH; 0.01 mA
pH Accuracy : ±0.02 pH; ±0.02 mA
pH Calibration offset: ±2 pH; ±2.2 mA; slope: 86 to 116%; ±0.5 mA
pH Temperature Compensation : fixed or automatic from 0 to 100°C (32 to 212°F) with HI76608 probe
pH Input impedence: 10^12 ohm
Recorder Output : 4-20 mA (isolated)
Load max: 500 Ohm
Display: LCD only for HI8614LN
Power Supply HI8614N: 18-30 VDC; HI8614LN: 20-36 VDC
Environment: 0 to 50°C (32 to 122°F); RH max 95% non-condensing
IP Rating: IP65
Dimensions: 165 x 110 x 71 mm (6.5 x 4.3 x 2.8’’)
Weight: 1 kg (2.2 lb.)
Ordering Information: HI8614N and HI8614LN (with display) is supplied with instructions.

Manual
