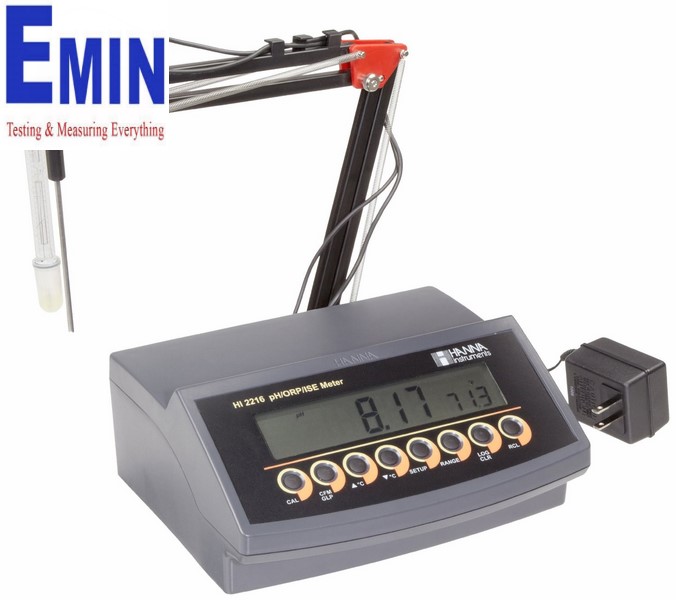

Hanna HI2216-02 pH/ORP/ISE/°C Benchtop Meter (–2.0 to 16.0 pH)

Manufacture: Hanna
Model: HI2216-02
Warranty: 12 month

- Range
+ pH: –2.0 to 16.0 pH; –2.00 to 16.00 pH; –2.000 to 16.000 pH
+ mV: ±999.9 mV (ORP); ±2000 mV (ORP)
+ ISE: 0.001 to 19990 ppm
+ Temperature: –20.0 to 120.0 ºC (-4.0 to 248.0ºF)
- Resolution
+ pH: 0.1 pH; 0.01 pH; 0.001 pH
+ mV: 0.1 mV (±999.9 mV); 1 mV (±2000 mV)
+ ISE: 0.001 (to 1.999 ppm); 0.01 (to 19.99 ppm);
0.1 (to 199.9 ppm); 1 (to 1999 ppm); 10 (to 19990 ppm)
+ Temperature: 0.1 ºC
- Accuracy (@ 20ºC/68ºF)
+ pH: ±0.1 pH; ±0.01 pH; ±0.002 pH
+ mV: ±0.2 mV (±999.9 mV); ±1 mV (±2000 mV)
+ ISE: ±0.5% FS
+ Temperature: ±0.2ºC (excluding probe error)
Relative mV Offset: ±2000 mV
pH Calibration: automatic, up to five point calibration with seven standard buffers available (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45), and two custom buffers
ISE Calibration: automatic, one or two points with five available buffers (0.1, 1, 10, 100, 1000 ppm)
Temperature Compensation: manual or automatic (with HI 7662 probe) from –20.0 to 120.0 ºC (-4.0 to 248.0ºF)
pH Electrode: HI 1131B glass body pH electrode with BNC connector and 1 m cable (included)
Temperature Probe: HI 7662 stainless steel temperature probe with 1 m (3.3’) cable (included)
Input Impedance: 1012 ohm
PC Connectivity: opto-isolated USB
Data Logging: log on demand, 200 records; autologging, 500 records
Logging Interval: stability logging (“StAb”) 5, 10, 30 seconds;
1, 2, 5, 10, 15, 30, 60, 120, 180 minutes
Power Supply: 12 VDC adapter (included)
Environment: 0 to 50°C (32 to 122°F); RH max 95%
Dimensions: 235 x 222 x 109 mm (9.2 x 8.7 x 4.3”)
Weight: 1.3 Kg (2.9 lb.)
Order Information: HI 2216-02 (230V) is supplied with HI 1131B pH electrode, HI 7662 temperature probe, HI 76404N electrode holder, HI 70004 pH 4.01 buffer solution sachet, HI 70007 pH 7.01 buffer solution sachet, HI 7071S electrolyte solution (30 mL), HI 700661 cleaning solution sachet, 12 VDC adapter and instructions.
